Semiconductor Wafer Quality Control and Inspection
Semiconductor wafer quality control combines incoming material inspection, in-process monitoring, and final substrate verification. Researchers and manufacturers specify acceptance limits for wafer diameter, thickness, surface defects, and electrical properties before selecting materials for semiconductor device applications. These checks help identify substrates that could affect fabrication yield or device reliability.
When requesting a quote from UniversityWafer, Inc., include the material, diameter, thickness tolerance, surface finish, orientation, and required inspection data. Discuss any custom wafer processing services and documentation requirements before ordering so the supplied substrate specifications match your process.

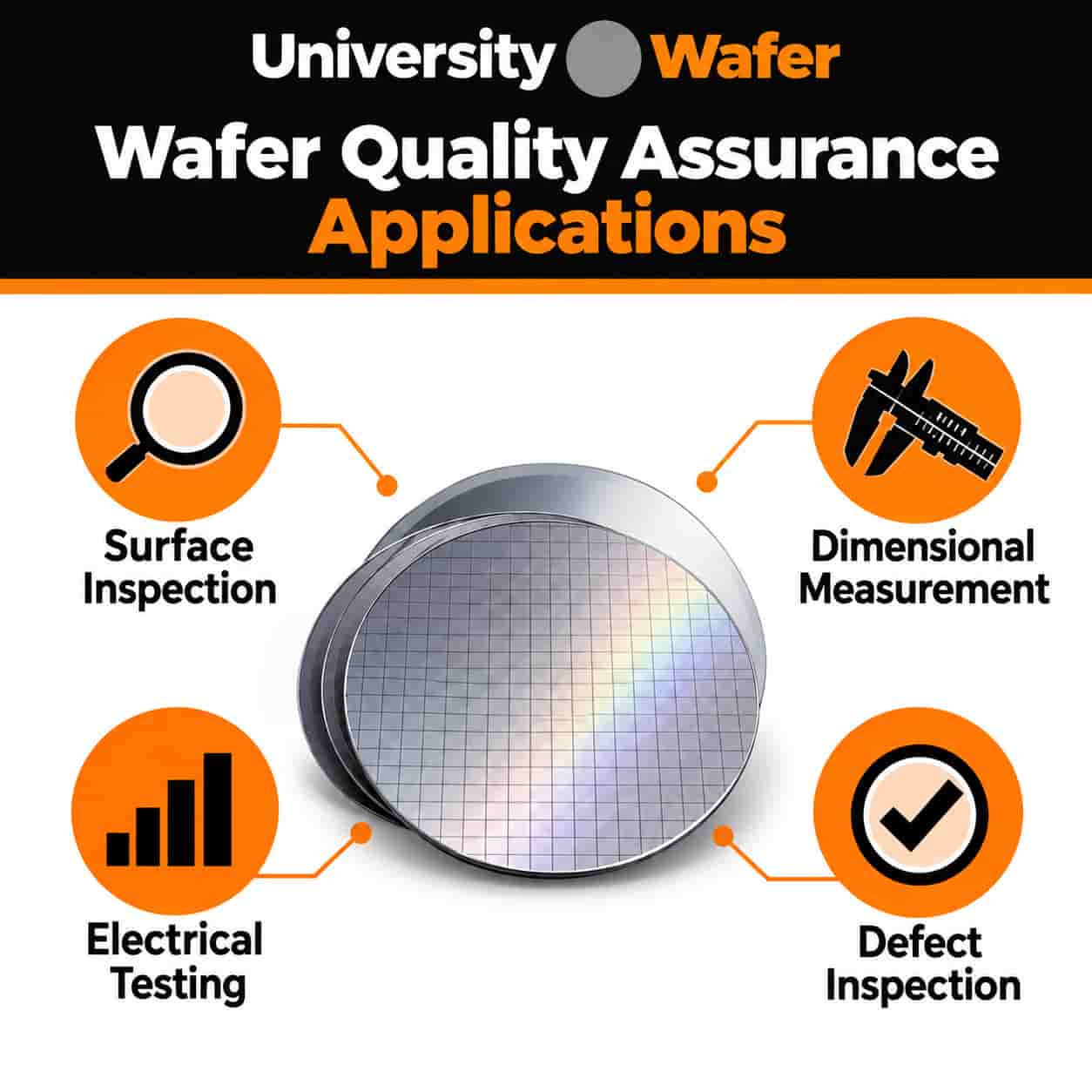

Quality assurance for semiconductor wafers includes checking material purity, surface quality, dimensions, electrical properties, and proper handling. Each area has specific standards and testing methods to make sure wafers will work as expected.
Get Your Quote FAST! Or, Buy Online and Start Your Research Today!
SEMI Wafer Specifications and Quality Management Standards
The semiconductor industry follows established standards and certifications for wafer quality. These standards create a common language and expectations for everyone in the global supply chain. Understanding these standards is important for anyone working with semiconductor materials.
SEMI standards provide shared specifications and test methods for semiconductor materials. For example, SEMI M1 addresses dimensional and other common characteristics of polished single-crystal silicon wafers. Identify the applicable standard, wafer category, and agreed acceptance limits when defining an order; requirements vary by material and application.
ISO 9001 defines requirements for a quality management system, while ISO/IEC 17025 addresses the competence of testing and calibration laboratories. Quality management certification and wafer inspection results serve different purposes. Confirm a supplier's current certification scope and request the product-specific measurements needed for your order.
- Wafer specifications: define material, dimensions, surface quality, and electrical acceptance limits.
- Quality management: review documented processes and any relevant ISO 9001 certification.
- Laboratory testing: confirm measurement methods and any relevant ISO/IEC 17025 accreditation scope.
- Inspection records: agree on sampling, measured parameters, and lot identification.
Additional documentation may be requested for automotive, aerospace, medical, or other specialized applications. Discuss the intended use, applicable customer requirements, and any material declarations with your supplier. For custom wafer processing and substrate services, confirm how polishing, thinning, or coating will affect the final inspection criteria.
Wafer Surface Inspection and Defect Detection
Surface quality is crucial for wafer quality assurance because even tiny defects can hurt device performance. Good inspection and classification systems are essential for maintaining high standards. Surface defects can cause device failures, lower yield, and reliability problems.
Wafer surface defects come in several types, each affecting wafer usability differently. These include foreign particles on the surface, scratches and physical damage, crystal defects (like dislocations and stacking faults), pattern defects (problems with photolithography or etching), and edge chips and cracks (damage to the wafer edge).
Modern wafer inspection uses many technologies to find defects of different sizes. These include optical inspection systems (which find visible defects using special lighting), laser scanning (which detects light-scattering defects very sensitively), Atomic Force Microscopy (AFM) (which measures surface features at the nanoscale), Scanning Electron Microscopy (SEM) (which provides detailed images of surface features), and interferometry (which measures surface flatness and roughness).
After finding defects, they must be classified and tracked. This includes sorting by size (from nanometer to millimeter), mapping locations across the wafer, calculating defect density (defects per area), and analyzing trends over time or between batches. For silicon substrates in critical applications, multiple inspection methods might be combined for thorough defect detection.
Research and production processes may specify different particle limits, scratch criteria, and defect densities. Review the surface acceptance criteria for the selected wafer grade and process. AFM surface characterization can provide local topography and roughness measurements that complement broader wafer inspection.
Semiconductor Substrate Material Quality Parameters
The basic quality of a semiconductor wafer starts with what it's made of and how pure it is. Different applications need specific material properties, and understanding these is key for quality assurance. Material quality directly affects how devices perform, their reliability, and manufacturing yield.
Silicon wafers are widely used in semiconductor manufacturing. Their specifications include silicon crystal orientation (commonly (100), (111), or (110)), dopant type and concentration, resistivity range, oxygen and carbon content, and minority carrier lifetime. Select the parameters and measurement methods that matter for the intended device or experiment.
For special applications, we offer ultra-thin silicon wafers as thin as 100 microns or less. These special substrates need extra quality controls to make sure they stay strong despite being so thin. The thinning process must be carefully controlled to keep thickness uniform and prevent warping or damage.
Beyond silicon, compound semiconductor materials offer unique properties for specialized applications. Germanium (Ge) is used in infrared optics and high-efficiency solar cells. Gallium Arsenide (GaAs) works well for high-frequency and optoelectronic applications. Sapphire (Al₂O₃) is used for making LEDs and RF applications. Each material has its own quality parameters that need checking.
Wafer Metrology: Diameter, Thickness, TTV, Bow, and Warp
Precise control of dimensions is essential for wafers to work with processing equipment and perform consistently. Quality assurance includes careful checking of geometric parameters to make sure wafers meet required specifications. Dimensional accuracy affects how wafers behave during processing and impacts final device yield.
Standard wafer dimensions follow industry specifications. Common wafer diameters include 50.8mm (2"), 76.2mm (3"), 100mm (4"), 150mm (6"), 200mm (8"), and 300mm (12"). Wafer thickness usually varies by diameter and application, typically between 275-775μm for standard wafers. The primary flat or notch shows crystal orientation and provides an alignment reference, while a secondary flat (when present) gives additional orientation information.
Wafer flatness is critical for photolithography and other processing steps. Important flatness measurements include Total Thickness Variation (TTV) (the difference between thickest and thinnest points), warp (deviation from a flat reference), bow (the wafer's curvature), site flatness (local flatness in specific regions), and edge roll-off (thickness changes near the wafer edge). Silicon-on-Insulator (SOI) wafers need especially strict flatness control because of their layered structure and the precision needed for device isolation.
Dimensional parameters are checked using special measuring equipment. This includes capacitive sensors (for thickness and TTV), optical interferometry (for flatness, warp, and bow), laser triangulation (for edge profile), and coordinate measuring machines (for diameter and flat/notch geometry). For ultra-thinned silicon wafers with precise thickness control down to 100 microns or less, special handling and measurement methods are needed.
Wafer Resistivity Testing and Crystal Quality Analysis
Electrical and material properties determine how semiconductor devices will perform. Complete testing makes sure wafers meet required specifications for their intended uses. These tests provide important information about how wafers will work in electronic devices and help predict device performance and reliability.
Silicon wafer resistivity testing verifies an important electrical specification for semiconductor substrates. Common methods include four-point probe measurement (the standard way to measure sheet resistance), spreading resistance profiling (for analyzing dopant distribution), capacitance-voltage measurement (for determining carrier concentration), and Hall effect measurement (for checking mobility and carrier type). These measurements help ensure wafers have the right electrical characteristics for their intended applications.
Carrier lifetime is a critical parameter for many electronic devices. Measurement techniques include microwave photoconductance decay (μ-PCD), quasi-steady-state photoconductance (QSSPC), surface photovoltage (SPV) measurement, and photoluminescence imaging. High carrier lifetime is especially important for solar cells and power devices, as it directly affects efficiency and performance. For annealed silicon wafers, additional testing may check if the annealing process achieved the desired electrical properties.
Crystal quality affects both electrical and mechanical properties of wafers. Assessment methods include X-ray diffraction (XRD) (which measures crystal orientation and perfection), etch pit density (EPD) testing (which reveals dislocations in the crystal structure), infrared transmission (which detects internal defects and inclusions), and Raman spectroscopy (which evaluates crystal stress and quality). For compound semiconductors like Gallium Arsenide, additional tests may check stoichiometry and the absence of anti-site defects that can affect device performance.
Statistical Process Control for Wafer Quality Assurance
Keeping wafer quality consistent requires good process control methods and statistical quality assurance techniques. These approaches help manufacturers identify trends, prevent defects, and continuously improve their processes. Effective process control is essential for achieving high yield and consistent quality in wafer manufacturing.
Statistical Process Control (SPC) techniques are fundamental to wafer quality assurance. These include control charts (which track key parameters over time), process capability indices (Cp, Cpk) (which measure process consistency), sampling plans (which optimize inspection efficiency), and trend analysis (which identifies gradual process shifts). Wafer services use SPC methods to ensure consistent quality across production runs, providing researchers and manufacturers with reliable materials.
Design of Experiments (DOE) methods optimize manufacturing processes. These include factorial experiments (which evaluate multiple variables at once), response surface methodology (which optimize process parameters), Taguchi methods (which improve robustness against variation), and evolutionary operation (EVOP) (which continuously improve processes). These techniques are especially valuable when developing processes for new materials or when moving from research to production scale.
Failure Mode and Effects Analysis (FMEA) is a proactive approach to quality assurance. This involves identifying potential failure modes in manufacturing processes, assessing the impact of each failure mode, determining how likely they are to occur, and developing preventive measures for high-risk scenarios. For specialized materials like sapphire substrates, FMEA helps identify unique failure modes associated with their crystal structure and processing requirements.
Wafer Inspection Reports, Certificates, and Lot Traceability
Good documentation and traceability systems are essential parts of wafer quality assurance. These systems ensure that all aspects of the manufacturing process are recorded and that materials can be traced throughout the supply chain. Good documentation helps maintain consistency, makes troubleshooting easier, and provides evidence of compliance with quality standards.
Before ordering, confirm whether a Certificate of Analysis (COA), Certificate of Conformance (CoC), or wafer inspection report is available for the selected material and lot. Request the specified limits, measured values, test methods, sampling details, and lot identification relevant to your application. Documentation availability and included measurements should be agreed with the supplier.
- Certificate of Analysis with detailed specifications
- Lot traceability information linking to manufacturing data
- Material Safety Data Sheets for safe handling
- Inspection reports documenting quality verification
- Process control records demonstrating consistency
- Deviation reports and corrective actions when applicable
Traceability systems track wafers throughout their lifecycle. This includes unique lot identification, process history documentation, raw material sourcing information, equipment and operator records, and inspection and test results. These systems enable quick response to quality issues by identifying affected materials and potential root causes. Traceability is particularly important for applications in critical industries like aerospace, defense, and medical devices.
Material Safety Data Sheets (MSDS) provide essential safety information including material composition and hazards, handling and storage guidelines, emergency procedures, disposal requirements, and regulatory compliance information. Proper documentation is particularly important for specialized materials that may have unique handling requirements or safety considerations.
Choosing Wafer Quality Specifications for Your Application
Quality assurance standards for semiconductor wafers are essential for ensuring reliability, performance, and consistency in both research and production. From material selection to final inspection, each step in the manufacturing process must be carefully controlled and documented to meet the strict requirements of modern semiconductor applications.
As technology advances, quality assurance standards and methods must evolve to meet new challenges. The trend toward smaller feature sizes, larger wafer diameters, and new materials requires more sophisticated quality control techniques. Advanced technologies like artificial intelligence and machine learning are becoming important tools for finding subtle defects and improving manufacturing processes.
For a wafer quality assurance quote, send UniversityWafer, Inc. your substrate specifications, quantity, acceptance limits, and requested documentation. Include any requirements for four-point probe measurements, thickness uniformity, surface inspection, or lot traceability so the material and inspection scope can be reviewed together.
Whether you're working with standard silicon substrates or specialized materials like Gallium Arsenide or sapphire, understanding and using appropriate quality assurance standards is essential for success. By working with experienced suppliers who maintain strict quality control processes, researchers and manufacturers can make sure their semiconductor materials will meet the demanding requirements of today's advanced applications.
