Silicon Wafers and Other Substrates for Research & Development

Researcher Reviews
5 Star Review Provides the best service to university researchers as well as companies in the semiconductor industry. High-Quality, low cost and small quantities make UniversityWafer stand out from the competition.

We have 1,000 of the following spec in stock! Buy as few as one wafer!

100mm Undoped (100) >20,000 ohm-cm SSP 500um Prime grade.

Let us know the quantity for an immediate quote!

150mm Silicon Wafer Sale

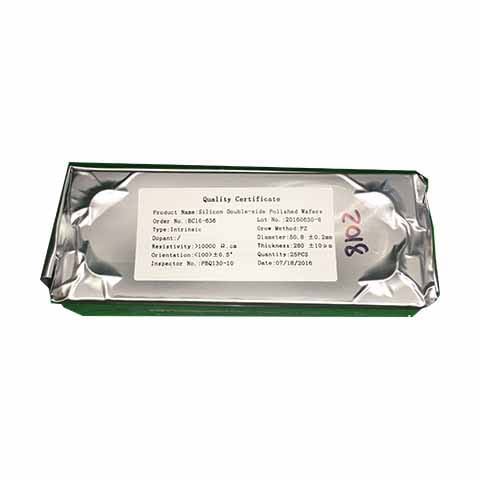

Factory, silver wrapped, cassette packs. There may be a handful of packs that are clear wrapped, but majority are the silver wrapped packs.

Pricing Any P/Boron material.........$11.90 per wafer
All other material...........................$6.90 per wafer
Very first line item.........................$4.90 per wafer (VSI-1EM003A/factory sealed "dummy wafers" Please let us know if you can use the following if you need a quote for another substgrate or service. If you can't use, please forward to a researcher you feel could use.

Please ask for the inventory list!

200mm Silicon Wafer Sale

8 inch epi material I want to get moved. All factory sealed. Entire qty. of any line item must be taken.

Any P type Boron material......$17.00 per wafer.
Any N type Arsenic material....$14.00 per wafer.

Please ask for the inventory list


Silicon Carbide (SiC) Made in The USA

We have the following silicon carbide that is made in the United Sates! Let us know if you can use!

  1. 150mm Datasheet
  2. 200mm Datasheet (350um thickness)
  3. 200mm Datasheet (500um thickness)

 Please ask us for the inventory list.


Click On The Wafer And Buy Online And Start Researching Today!


Silicon Wafer & Other Substrate Specials

Partial Silicon Wafer Cassettes

We have a large inventory of high-quality partial Silicon Wafer cassettes that you can buy as few as one! Please ask for the list.

Simox SOI Sale 150mm and 200mm available.

200mm SIMOX SOI Wafers in Stock

New Sale on Simox SOI Wafers!

Device Layer (nm) Box Layer (nm) Handle Layer (um) TTV (um) Qty in Stock
55 145 725+/-15 <1 184
70 145 725+/-15 <1 253
70 2000 725+/-15 <1 1756
75 250 725+/-15 <1 18
80 1000 725+/-15 <1 374
88 200 725+/-15 <1 23
145 1000 725+/-15 <1 9166
160 400 725+/-15 <1 24
300 300 725+/-15 <1 43
400 150 725+/-15 <1 21
700 2000 725+/-15 <1 22
1250 145 725+/-15 <1 353
1250 400 725+/-15 <1 19
2100 400 725+/-15 <1 16
3500 400 725+/-15 <1 46
3000 300 725+/-15 <1 4414

What SIMOX SOI Wafer Specs Are Used To Fabricate Devices?

We use SOI for our device work – usually as 10 mm x 10 mm or 15 mm x 15 mm chips - so you'll appreciate that one-off 200 mm wafer should keep us well supplied for some time. To make our devices (single electron transistors) we have to have a highly n-doped device layer - a virtual conductor – but if required we can use a spin-on dopant to generate this ourselves. I dont think any of your material has the necessary doping level – but thats no problem Your SIMOX SOI Part 2551 might well furnish our need. I am unclear as to the formalities required to purchase from one wafer from you. Are you able to send a quote so that I can place an order and will that include custom clearance, packing and and postage.

Reference #225661 for pricing or buy online.

------------------

Silicon Carbide Wafers (Made in the USA)

SK Siltron CSS™ 4H-1460 n+ SiC TEST GRADE DR WAFER
GMID
Quantity Range
Price per unit
4119951
Min
Max
25
100
$Contact Us
SK Siltron CSS™ 4H-1460 n+ SiC PRIME GRADE WAFER
GMID
Quantity Range
Price per unit
4140052
Min
Max
25
100
$Contact Us

Ultra-Thin Silicon Wafers

We plan to do PVD coating on this wafer. Our coating system has a ultra-thin silicon wafers4” diameter mounting surface. The wafer must be mounted on this surface so it must not fracture when bent to a radius of 50.8 mm. We think a polished high quality crystal of 50 micron thickness should have a critical bending radius of about 37 mm. We have a reel-to-reel coating system that can do several square meters of coating per day. We think this system might be great for coating of Solar Panels and other high volume needs. I have attached a publication reporting bending studies on 50 um silicon.

Reference #265057 for pricing.

2 micron thin available

25.4mm Silicon Wafers

University researchers and industry scientists use 1 inch 25.4mm undoped silicon waferssilicon wafers for their projects because they are easy to work with and inexpensive equipment is readily available. Small diameter wafers are a low-cost alternative to larger diameter wafers which cost more and require more expensive equipment.

Typical researcher quote request.

"Please, send us quotation for ten zero-diffraction plates for powder XRD with following specs: Diameter 32 mm Thickness approx 2 mm Single Side Polished w/o cavity Example - Off Ori 9° of (001) or other Thank you in advance."

Reference #268940 for specs and pricing.

Undoped, Boron, Arsenic, Antimony Doped in Stock

------------------------------------------

50.8mm Silicon Wafers

(100) (111) (110) & Other Oris

I'm wondering if you have silicon wafers that are polished 50.8mm silicon wafer Orison both sides.

I need only one or two wafers, ~2 inch diameter, 0.5-1 mm thick. I use them as dichroic mirrors (transmit IR and reflect visible light). Most importantly they have to be polished on both sides.

Reference #249131 for specs and pricing.

-------------------------------------------

76.2mm Silicon Wafers

UniversityWafer, Inc. is mentioned in over 20,000 academic research papers. Below is a typical interaction.

Hello! We are looking for a product that was referenced in 76.2mm silicon wafers p-type boron dopedsome publications : “Silicon wafers (3-inch diameter, Type-P, 1S polished; University Wafer, cat. no. S3P01SP” (referenced by doi:10.1038/nprot.2013.046) However I cannot find that product on your web site. Do you have any suggestions of which product might work for the same applications? I was thinking that # 978 would probably work (7.6 cm, single side polished, type p) but was not sure. Can you maybe confirm?

Single and Double Side Polished

Material, life sciences and nanomedicine researchers have used 76.2mm Silicon Wafer Item #1318 to measure the dimensions of nanoscale objects.

Please reference #260858 for specs and pricing.

---------------------------------------

100mm Silicon Wafer

Float Zone (Fz), Czochralski (Cz)

Research requests the following:

I am interested in ordering a batch of 4-inch diameter Si 100mm float zone grown silicon waferswafers. They need only be polished on one surface and of mechanical grade (test and prime also available) Si as they are to be used mostly as carrier wafers in semiconductor fab processes. I would be looking for at least 10 but we are interested in what kinds of bulk discounts you can offer for low-grade Si wafers as we may buy a lot. Many thanks in advance for your help!

Please reference # 214835 for pricing or buy online.

------------------------------------

150mm Silicon Wafer

Highly Doped and Low Doping

We are looking for low doped silicon wafers for FTIR 150mm partial cassetted silicon wafersmeasurements. On your website, the following has been referenced for such application. 6” DSP wafers,Work well for IR are spec’d at: Type: P Dopant: Boron Resistivity: 10 – 20 Ohm cm Ori: <100> Thickness: 625± 25um What would be the transmission of this wafer in 400-4000 cm-1 range?

Reference #270929 for specs and pricing or buy online.

------------------------------------------------

Float Zone (FZ) Silicon Wafers

This is a typical interaction we have with our research clients:

Hi, I am after a range of wafers to study surface passivation and bulk properties after solar cell processing.

Anything already in stock is preferable as I am looking to source some wafers as quickly as possible, if you have anything suitable for the following:

  • ~15x FZ, 100, high resistivity (n-type >20ohm-cm), double sided polished, 200-500um, 2inch?
  • ~20x FZ, 100, 5-10 ohm-cm n-type, double sided polished, 150-400um, 4inch?
  • ~20x FZ, 100, 5-10 ohm-cm p-type, double sided polished, 150-400um, 4inch? (p-type equivalent of previous point – ideally as close as possible in specs)
  • ~10x FZ, 100, 1-10 ohm-cm n-type, surface not critical, 200-400um, 4inch?
  • ~40x FZ, 100, 0.5-5 ohm-cm p-type, surface not critical, 200-400um, 4inch?
  • ~20x FZ, 100, 0.5 ohm-cm, polished or other?, 300-500um, 4 inch? Ideally sisters and low carbon concentration I look forward to hearing the options!

Please reference #264215 for pricing. Or buy online here.





UniversityWafer, Inc. and our partners fill the need of high-quality silicon wafer, semiconductor wafers, substrate from Al2O3 to ZnO, that are epi-ready. Buy as few as one wafer to large volume. Our store is Open 24 hours per day, 7 days per week!
