Low Surface Roughness Silicon Wafers | CMP Polished Substrates

Low surface roughness silicon wafers provide ultra-smooth, mirror-polished surfaces for epitaxial growth, wafer bonding, MEMS fabrication and precision thin-film research. UniversityWafer supplies CMP polished silicon wafers with target surface roughness as low as Ra 1 Å (0.1 nm), subject to wafer specifications and measurement conditions. Choose N-type or P-type silicon substrates with custom orientation, thickness, resistivity, and single- or double-side polishing.

UW Logo

Ultra-Smooth Silicon Wafers for Surface-Sensitive Research

UniversityWafer supplies prime-grade silicon wafers with ultra-low surface roughness for applications requiring exceptional surface quality. Through advanced chemical mechanical planarization (CMP), polished silicon substrates can achieve surface roughness values as low as Ra = 1 Å (0.1 nm) for demanding semiconductor and nanotechnology research.

Researchers frequently specify low-roughness wafers for thin-film deposition, epitaxial growth, MEMS fabrication, quantum devices, AFM measurements, photonics, and other surface-sensitive processes where minimizing defects and maximizing film uniformity are critical.

Available options include P-type and N-type silicon, multiple crystal orientations, diameters from research samples to production wafers, various resistivity ranges, and single-side or double-side polished finishes.

Choosing a Low-Roughness Silicon Substrate

For wafer polishing and lapping projects, specify the required Ra or RMS (Rq) surface roughness, scan size, wafer diameter, silicon orientation, and whether the front side or both sides must meet the finish requirement. Single-side polished (SSP) and double-side polished (DSP) wafers support different bonding, coating and metrology workflows.

Surface roughness, wafer flatness and total thickness variation (TTV) are different specifications. A low Ra value does not automatically guarantee low TTV or low bow. Ask for the appropriate metrology and certificate before selecting wafers for critical processes.

Get Your Low Surface Roughness Silicon Quote FAST! Or, Buy Online and Start Researching Today!





Low Surface Roughness Silicon Wafers

UniversityWafer supplies silicon wafers with exceptionally low surface roughness for applications requiring ultra-smooth surfaces. Using advanced chemical mechanical planarization (CMP), polished silicon substrates can achieve surface roughness values as low as Ra = 1 Å (0.1 nm) or better, making them suitable for semiconductor fabrication, MEMS, thin-film deposition, photonics, and surface-sensitive research.

Ultra-low roughness wafers improve film uniformity, reduce interface defects, and enhance device performance in applications such as epitaxial growth, optical coatings, nanotechnology, quantum devices, and precision metrology.

Research Inquiry

Customer Request:

"I was wondering if you had an n-doped (or p-doped) silicon wafer with very low surface roughness, approximately Ra = 1 Å or less."

UniversityWafer Response:

Yes. We can supply ultra-smooth CMP polished silicon wafers that meet these requirements.

Example Specification

  • Diameter: 3 inch (76.2 mm)
  • Orientation: <100>
  • Dopant: N-type (P-type also available)
  • Resistivity: 1–10 Ω·cm
  • Thickness: 380 µm
  • Polish: Single-Side Polished (SSP)
  • Quantity: 25 wafers
  • Surface Roughness: Ra ≤ 1 Å

Additional diameters, orientations, dopants, resistivities, and polishing options are available upon request.

How Surface Roughness Is Achieved

Chemical mechanical polishing (CMP) combines controlled chemical action and mechanical polishing to reduce surface irregularities. Achievable roughness depends on the starting wafer, final cleaning, polishing process and measurement method. Request the inspection criteria and relevant metrology details for surface-sensitive applications.

Surface roughness verification: Atomic force microscopy (AFM) is commonly used to characterize nanoscale surface roughness without necessarily damaging the wafer. When specifying Ra, confirm the scan area, sampling locations, measurement method, and whether a certificate reports measured results or a process-based guarantee.

Applications Requiring Ultra-Smooth Silicon Wafers

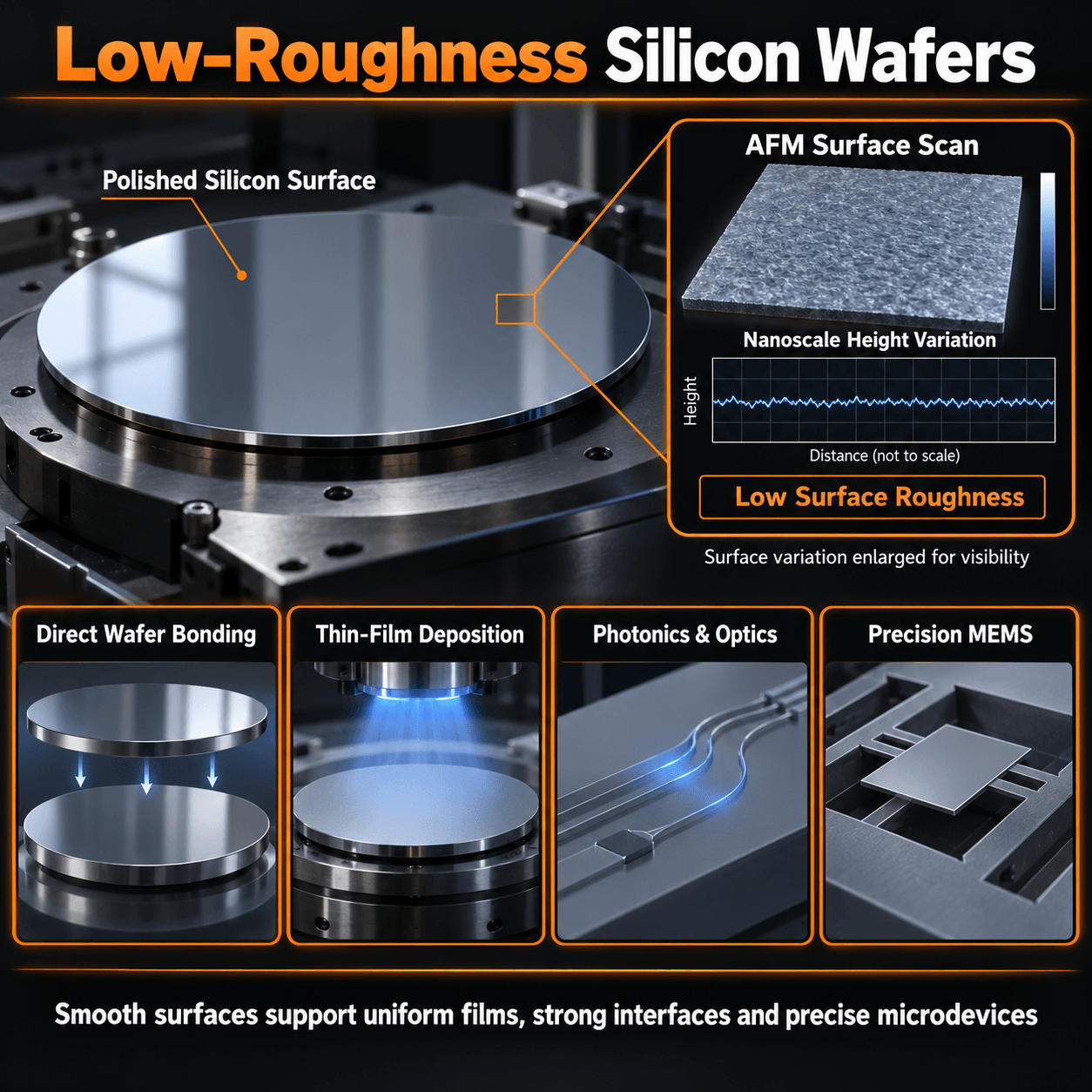

Low surface roughness silicon wafer applications in direct wafer bonding, thin-film deposition, photonics, precision MEMS, and AFM surface analysis

CMP Polished Silicon Wafer Applications

Ultra-smooth Si substrates are used for direct wafer bonding, silicon epitaxial layers, thin-film deposition, MEMS structures, and photolithography. The best polishing and cleaning process depends on the required surface chemistry, defect tolerance and downstream fabrication steps.

What to Include in a Low-Roughness Wafer Quote

  • Target roughness (Ra or Rq), units, and measurement area
  • Silicon diameter, thickness and crystal orientation
  • N-type or P-type doping and target resistivity
  • SSP or DSP finish, and polished face requirements
  • Wafer flatness, TTV, bow and particle specifications if needed
  • Desired quantity and requested inspection documentation

Need CMP polished silicon wafers? Buy silicon wafers online or request a quote with your surface finish and measurement requirements.
