Substrates Used to Fabricate Optical Filters
Ask About Our Optical Quality Polishing
We provide optical quality polishing services and and can provide 1 wavelength of 1𝝀 of flatness. ten a Zygo interferometer to allow us to measure flatness to the sub lama level.
We have alarge amount of coating capability to our production area. This will be coating for optical filters such as bandpass filtersand IR filters for use in the new 3D gesture detection technology.
Get Your Quote FAST! Or, Buy Online and Start Researching Today!

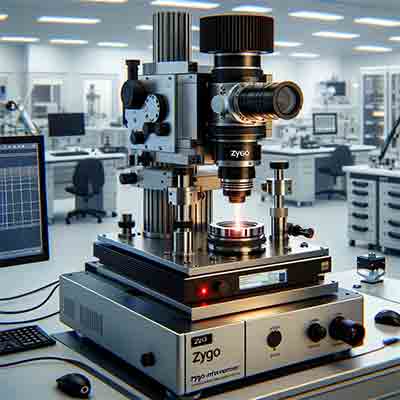

What is a Zygo interferometer
A Zygo interferometer is an advanced optical instrument used for high-precision surface measurement and analysis. It utilizes the principles of interferometry to provide detailed and accurate information about surface topography, making it an essential tool in various high-tech industries and research fields.
Optical Filters to Selectively Transmit or Reflect Wavelengths
Optical filters are devices that selectively transmit or reflect specific wavelengths of light while blocking others. The selection process is based on the interaction of light with materials and structures designed to achieve the desired filtering effect. Here are the primary mechanisms through which optical filters achieve selective transmission or reflection:
Types of Optical Filters
- Absorptive Filters
- Interference (Dichroic) Filters
- Color Glass Filters
- Polarizing Filters
1. Absorptive Filters
Absorptive filters use materials that absorb specific wavelengths of light while allowing others to pass through.
The materials are chosen based on their absorption spectra.
- Mechanism: The material's electronic structure determines which wavelengths are absorbed. Molecules or compounds in the filter material absorb specific wavelengths and convert the light energy into heat.
- Example: Colored glass filters, where the glass is doped with metal ions that absorb certain wavelengths.
2. Interference (Dichroic) Filters
Interference filters use thin-film coatings to create constructive and destructive interference patterns, selectively reflecting and transmitting light at specific wavelengths.
- Mechanism: These filters consist of multiple layers of dielectric materials with different refractive indices. When light hits the filter, some wavelengths constructively interfere and are transmitted, while others destructively interfere and are reflected.
- Structure: Typically, they have alternating layers of high and low refractive index materials. The thickness and number of layers determine the filter's spectral properties.
- Example: Bandpass filters that only allow a narrow range of wavelengths to pass through while reflecting others.
3. Color Glass Filters
Color glass filters are made by adding different metal oxides or other compounds to glass, which gives the glass specific absorption characteristics.
- Mechanism: The added compounds absorb specific wavelengths of light, thus coloring the glass and allowing only certain wavelengths to pass through.
- Example: A green filter made by adding chromium oxide to glass will absorb red and blue wavelengths while transmitting green.
4. Polarizing Filters
Polarizing filters selectively transmit light waves oriented in a particular direction while blocking waves oriented perpendicularly.
- Mechanism: These filters use materials that can align light waves, such as stretched polymers or dichroic crystals. They absorb light waves not aligned with the filter's polarization axis.
- Example: Polarizing sunglasses reduce glare by blocking horizontally polarized light reflected from surfaces like water or roads.
Detailed Mechanism of Interference Filters
To delve deeper into interference filters, which are widely used in optical devices due to their precision and versatility:
- Layer Thickness: The optical thickness (physical thickness multiplied by the refractive index) of each layer in the filter is designed to be a specific fraction of the target wavelength (e.g., λ/4 or λ/2).
- Constructive Interference: When the optical path difference between reflected waves from different layers is an integer multiple of the wavelength, constructive interference occurs, and the wavelength is transmitted.
- Destructive Interference: When the optical path difference is an odd multiple of λ/2, destructive interference occurs, and the wavelength is reflected.
- Bandpass Filters: These are designed to transmit a specific range of wavelengths while reflecting or absorbing others. The design involves creating a stack of alternating high and low refractive index materials with precise control over layer thickness.
- Notch Filters: These filters are designed to block a specific range of wavelengths while transmitting others. They are useful for applications where a particular wavelength (e.g., a laser line) needs to be removed from the spectrum.
Applications of Optical Filters
- Imaging Systems: To enhance contrast or isolate specific features by selecting certain wavelengths.
- Spectroscopy: To isolate specific spectral lines for analysis.
- Laser Systems: To protect sensors or eyes from harmful wavelengths while allowing useful wavelengths to pass.
- Photography: To achieve specific color effects or to reduce glare and reflections.
In summary, optical filters selectively transmit or reflect wavelengths based on their design and material properties. Absorptive filters rely on material absorption characteristics, while interference filters use thin-film coatings to manipulate light through constructive and destructive interference. These principles enable precise control over the wavelengths of light that pass through or are reflected by the filter.
