Why Do You Need Silicon Wafer Flats or Notch?
A wafer flat provides a physical reference for handling, positioning, and alignment. Some traditional specifications also use the number and relative position of flats to identify conductivity type and crystal orientation. A wafer notch offers a smaller alignment reference on many modern larger-diameter substrates. These markings must be interpreted using the applicable wafer specification, not assumed to identify doping universally.
Choose from 100mm silicon wafers with flats, 150mm silicon wafers, and 200mm silicon wafers, depending on the required edge geometry.
Need silicon wafers with a specific flat or notch? Buy Online or request a quote with your diameter, orientation, conductivity type, flat length, and quantity.
What does a Silicon Wafer (Si) Flat Look Like?

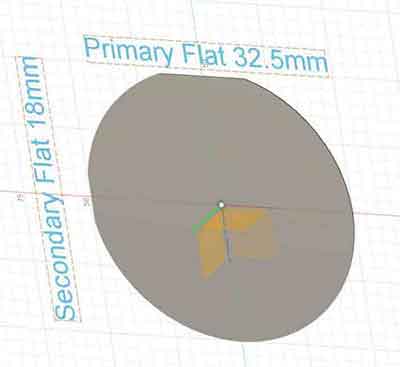

The diagram below illustrates primary and secondary silicon wafer flats on a round substrate. The primary flat is typically the longer straight edge; the secondary flat is shorter and may provide additional identification information under older flat-position conventions. For details on the wafer surface plane, see silicon wafer orientation.
Silicon Wafer Notch
A silicon wafer notch is a small cut in the perimeter that provides a reference for automated wafer alignment. Notches are widely used on 200mm and 300mm substrates, while smaller and legacy wafer formats more commonly use flats. A notch alone generally does not establish whether a wafer is P-type or N-type.
Wafer Flats or Notches?
For 50.8mm, 76.2mm, 100mm, and 150mm silicon wafers, primary flats—and sometimes secondary flats—are common. For 200mm and 300mm wafers, a notch is generally the standard orientation feature. Custom substrate orders may differ, so confirm the actual flat or notch geometry, length, position, and tolerance before fabrication.
What are Silicon Wafer Flats?
A silicon wafer flat is a straight segment ground into an otherwise circular silicon substrate. Its primary purpose is to provide a repeatable mechanical orientation reference for processes such as photolithography, alignment, wafer handling, and inspection. Flat arrangements also served as conventional identifiers for wafer orientation and dopant type on certain smaller wafer formats.
The primary wafer flat is usually the longest edge. The optional secondary wafer flat is shorter; its position relative to the primary flat can carry identification information in defined standards. Because the marking convention depends on wafer diameter, crystal orientation, and supplier specification, check the wafer certificate rather than inferring material properties from shape alone. Compare (100), (110), and (111) silicon orientation and N-type versus P-type silicon substrates.
Primary Flat vs Secondary Flat
The primary flat supplies a prominent alignment feature. A secondary flat, when present, is a shorter edge placed at a specified angular position. Traditional flats may help distinguish crystal orientation and conductivity type, but modern wafer specifications may use different conventions. The cut itself does not change the wafer's doping or crystal orientation.
Why Crystal Orientation Matters
Silicon orientations such as (100), (110), and (111) influence anisotropic etching and other fabrication behavior. A wafer-flat reference helps align process patterns relative to the intended crystallographic directions. This can be important for MEMS, sensors, and semiconductor device research.
Silicon Wafer Flat Length
Below are example silicon wafer dimensions and primary and secondary flat lengths across common wafer diameters. The actual allowable geometry depends on the ordered wafer specification. Larger diameters commonly use notches rather than flats; request a drawing or supplier specification if the exact dimension matters.
| Spec. | 50.8mm (2”) | 76.2mm (3”) | 100mm | 125mm (5") | 150mm (6") | 200mm (8") | 300mm (12") | |
|---|---|---|---|---|---|---|---|---|
| Diameter | 2.000+/-.015” 50.8+/-.38mm |
3.000+/-.025” 76.2+/-.63mm |
100+/-.5mm | 125+/-.5mm | 150+/-.2mm | 200+/-.2mm | 300+/-.2mm | |
| Thickness | 0.011+/-.001” 279+/-25um |
0.015+/-.001” 381+/-25um |
525+/-20 or 625+/-20um | 625+/-20um | 675+/-20 or 625+/-15um | 725+/-20um | 775+/-20um | |
| Primary Flat Length | 0.625+/-.065” 15.88+/-1.65mm |
0.875+/-.125” 22.22+/-3.17mm |
32.5+/-2.5mm | 42.5+/-2.5mm | 57.5+/-2.5mm | Notch | Notch | |
| Secondary Flat Length | 0.315+/-.065” 8+/-1.65mm |
0.44+/-.06” 11.18+/-1.52mm |
18.0+/-2.0mm | 27.5+/-2.5mm | 37.5+/-2.5mm | |||
| Primary Flat Location | {110}+/-1° | {110}+/-1° | {110}+/-1° | {110}+/-1° | {110}+/-1° | Notch (specify orientation) | Notch (specify orientation) | |
How to Choose Silicon Wafer Flats and Notches
For a custom silicon wafer flat or notch order, specify wafer diameter, thickness, surface orientation, P-type or N-type doping, resistivity, and edge geometry. If alignment is critical, include flat length, secondary-flat angle, notch position, and tolerance. See silicon wafer resistivity and prime-grade silicon wafers for additional substrate requirements.
Common Wafer Flat and Notch Applications
- Semiconductor lithography: repeatable positioning for wafer alignment and handling
- MEMS and micromachining: orientation references for anisotropic silicon etching
- Research and prototyping: consistent wafer edge identification for laboratory workflows
- Automated wafer processing: notch-based references used by compatible equipment
Need wafers with custom flats, notches, or crystal orientation? Buy silicon wafers online or use the quote form to request your specifications.
