Periodically Poled Lithium Niobate (PPLN) Substrates

Periodically poled lithium niobate (PPLN) uses an engineered pattern of reversed ferroelectric domains for nonlinear optical frequency conversion and domain-imaging research. UniversityWafer, Inc. helps researchers source lithium niobate substrates and related piezoelectric materials. Specify the poling period, crystal cut, dimensions, and intended optical or PFM experiment when requesting a periodically poled substrate quote.

UW Logo

PPLN Reference Sample for Piezoresponse Force Microscopy

A Ph.D. candidate in engineering contacted UniversityWafer, Inc. seeking periodically poled lithium niobate (PPLN) substrates for use as a calibration tool in Piezoresponse Force Microscopy (PFM). PFM is widely used to characterize piezoelectric and ferroelectric materials at the nanoscale and benefits from reference samples with well-characterized domain structures and a measurement geometry matched to the experiment.

Periodically Poled Lithium Niobate (PPLN)

Lithium niobate wafers can be engineered with periodically reversed ferroelectric domains. A standard LiNbO3 wafer is not automatically a PPLN sample. For this inquiry, the required domain pattern, sample orientation, and lateral PFM geometry should be confirmed before selecting material.

Periodically poled lithium niobate (PPLN) is widely used for second harmonic generation, optical parametric oscillators, frequency doubling, quantum optics, telecommunications, integrated photonics, and piezoresponse force microscopy. Its strong piezoelectric and electro-optic properties make LiNbO3 one of the most important materials used in photonics and ferroelectric research.

Reference #254374 for specifications and pricing.

Get Your Quote Fast! Send your PPLN requirements below, or browse research substrates online and start researching today. Confirm periodic poling separately from the base wafer specification.





What is Piezoresponse Force Microscopy (PFM)?

Piezoresponse Force Microscopy (PFM) is a specialized atomic force microscopy (AFM) technique used to study the piezoelectric and ferroelectric properties of materials at the nanoscale. PFM is widely used for investigating domain structures, polarization switching, and electromechanical behavior in materials such as piezoelectric materials, lithium niobate, lithium tantalate, and ferroelectric ceramics.

How Does PFM Work?

  1. Probe Interaction: A conductive AFM tip contacts the sample while an alternating voltage generates an electric field.
  2. Piezoelectric Response: Piezoelectric materials expand or contract when subjected to the applied electric field.
  3. Signal Detection: The AFM cantilever detects mechanical displacement, allowing researchers to measure local piezoelectric behavior.
  4. Domain Imaging: By scanning across the surface, PFM generates high-resolution images showing ferroelectric domains and piezoelectric properties.

PFM is extensively used in materials science, nanotechnology, MEMS, sensors, photonics, and ferroelectric device research. Combined with periodically poled lithium niobate substrates, PFM supports comparison of domain contrast and electromechanical response. Quantitative calibration requires a suitable reference and control of instrumental and electrostatic contributions.

What Does Periodically Poled Mean?

Periodically poled refers to a ferroelectric crystal whose polarization direction has been reversed in a repeating pattern. This process creates alternating domains inside the material, allowing the substrate to support nonlinear optical processes such as frequency conversion, second harmonic generation, sum frequency generation, and optical parametric generation.

Periodically poled materials are used in nonlinear optics, lasers, telecommunications, quantum optics, and piezoresponse force microscopy. One of the most common examples is periodically poled lithium niobate, also known as PPLN.

Periodically poled lithium niobate PPLN applications in frequency doubling, wavelength conversion, quantum optics, and PFM domain imaging

Periodically Poled Lithium Niobate PPLN

Lithium niobate wafers are among the most widely used substrates for periodic poling because LiNbO3 has strong ferroelectric, piezoelectric, electro-optic, and nonlinear optical properties. PPLN substrates are commonly used for frequency doubling, wavelength conversion, laser research, integrated photonics, and calibration tools for PFM measurements.

In periodically poled lithium niobate, the crystal domains are engineered so that the nonlinear optical response can be controlled with a specific poling period. This makes PPLN useful for applications that require a designed nonlinear interaction or a defined domain pattern.

Quasi-Phase Matching and the Poling Period

In quasi-phase matching (QPM), periodic domain inversion reverses the sign of the relevant nonlinear coefficient so that light generated along the interaction length can build constructively. The required poling period depends on the interacting wavelengths, polarization configuration, material composition, and operating temperature. There is no single poling period that suits every PPLN experiment.

Temperature tuning changes the phase-matching condition over a limited range. For second-harmonic generation (SHG), specify both the pump wavelength and desired output wavelength. Also provide crystal length, beam conditions, and your intended temperature range when these are known.

For optical-power-sensitive experiments, state whether MgO-doped or undoped lithium niobate is required. MgO doping and periodic poling are separate specifications: a doped wafer is not automatically a poled optical device.

Periodically Poled Materials: PPLN, PPLT, and PPKTP

Several ferroelectric and nonlinear optical substrates can be periodically poled. The best choice depends on the application, wavelength range, optical power, poling period, and device design.

  • Lithium niobate (LiNbO3) / PPLN: Commonly used for PPLN, nonlinear optics, telecommunications, lasers, and PFM calibration.
  • Potassium titanyl phosphate (KTP) / PPKTP: Used in nonlinear optical devices and laser frequency conversion.
  • Lithium Tantalate LiTaO3 / PPLT: A ferroelectric material used in optical, acoustic, and electronic applications.
  • Other ferroelectric crystals: Suitability depends on domain-switching behavior, achievable pattern, and processing conditions; ferroelectricity alone does not guarantee a practical poled device.

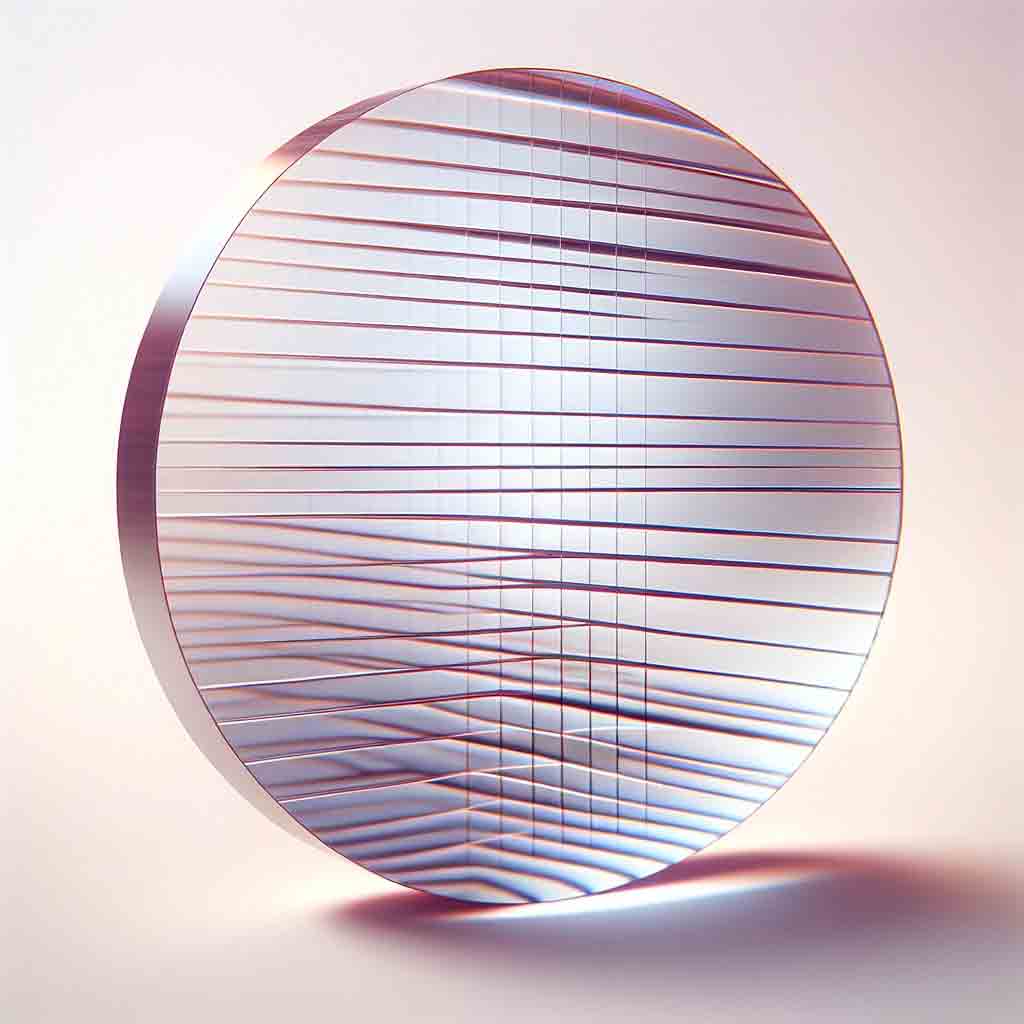

Periodically poled lithium niobate substrate for nonlinear optics and PFM domain research

Periodically Poled Wafers for Piezoresponse Force Microscopy

Periodically poled lithium niobate wafers can be used as domain-reference samples in piezoresponse force microscopy, also called PFM. PFM is used to measure piezoelectric and ferroelectric response at the nanoscale, including domain orientation, switching behavior, and lateral or vertical piezoresponse signals.

A lateral PFM signal is associated with cantilever torsion and can be sensitive to in-plane electromechanical response. When an alternating voltage is applied through a conductive AFM tip, the piezoelectric material can move laterally, creating a torsional response in the cantilever. Interpretation depends on crystal cut, cantilever direction, domain geometry, and measurement artifacts. A useful reference should have a characterized domain pattern compatible with the selected measurement channel.

Applications of Periodically Poled Substrates

How to Specify a Periodically Poled Substrate

Requirements to include in your PPLN inquiry
ParameterWhat to specify
Material and formatLiNbO₃, LiTaO₃, or other required crystal; bulk wafer, diced sample, or device format.
Crystal cut and compositionCut, orientation tolerance, undoped or doped composition, and relevant material requirements.
Domain patternPoling period, duty cycle, poled area, domain depth, and any uniformity or verification requirements.
Dimensions and finishLength, width or diameter, thickness, tolerances, polish, and surface-quality requirements.
Optical experimentPump and output wavelengths, polarization, interaction length, operating temperature, power or pulse conditions, and coatings.
PFM experimentLateral or vertical measurement, sample mounting, cantilever orientation, domain-reference requirements, and documentation.
Order detailsQuantity, required delivery date, and acceptable alternatives.

An optical frequency-conversion crystal and a PFM domain-reference sample may require different geometries and documentation. Send your complete periodically poled substrate specification to confirm available options and pricing.

Periodically Poled Substrate Questions

Is every lithium niobate wafer periodically poled?

No. Periodic poling is an engineered domain pattern that must be specified separately from the base lithium niobate wafer, crystal cut, and polishing requirements.

How do I choose a PPLN poling period?

Choose the period for the interacting wavelengths, polarization configuration, material composition, and operating temperature. Include your intended nonlinear process and optical geometry when requesting a specification.

Can the same PPLN sample serve optical and PFM experiments?

Possibly, but the requirements differ. An optical device needs an appropriate interaction geometry and optical finish, while a PFM reference needs a characterized domain pattern and a surface compatible with the measurement channel.

Is MgO-doped lithium niobate the same as MgO:PPLN?

No. MgO doping describes the crystal composition. MgO:PPLN additionally has a periodically inverted domain structure. Specify both the composition and poling requirements.
