How much would ten 550nm super low stress silicon nitride on a 350um silicon wafer cost? How much would 20 silicon nitride wafers of this type cost?
Silicon Wafer Cost by Diameter
Wafer diameter is one of the most visible pricing factors, but it does not determine price by itself. A smaller prime-grade wafer with tight resistivity, TTV, or surface specifications can cost more than a larger test- or dummy-grade wafer. Availability, quantity, polish, coatings, and special processing also affect the final quote.
| Wafer Size | Common Uses | Important Price Drivers |
|---|---|---|
| 2–3 inch | Research, prototyping, teaching, small-tool processing | Grade, polish, orientation, quantity |
| 4 inch / 100 mm | MEMS, sensors, university cleanrooms, device development | Grade, resistivity, SSP/DSP, TTV, coatings |
| 150 mm | R&D, process development, device fabrication | Thickness, grade, electrical specs, polish |
| 200 mm | Research, pilot lines, production processing | Grade, TTV, polish, coatings, availability |
| 300 mm | Advanced semiconductor processing and production research | Surface quality, tight dimensional specs, quantity, inventory |
For the most accurate price, compare current inventory or request a quote using the exact diameter, thickness, orientation, dopant, resistivity, polish, grade, coating, and quantity you need.
Factors Influencing Wafer Pricing:
- Quality Grade: Prime grade wafers, which meet the highest standards for electronic device fabrication, are more expensive than test or dummy grades used for equipment testing or process development.
- Doping and Resistivity: Silicon wafer doping and resistivity specifications can affect pricing because boron-, phosphorus-, arsenic-, or antimony-doped wafers may require tighter electrical-property control.
- Polishing and Surface Specifications: Single-side-polished and double-side-polished silicon wafers can have different prices because tighter surface roughness, flatness, TTV, bow, and warp specifications require additional processing and inspection.
Why Can Two Wafers of the Same Diameter Have Different Prices?
Two silicon wafers with the same diameter can have very different prices because diameter is only one specification. A wafer with tighter TTV, lower bow and warp, lower surface roughness, a narrower resistivity range, double-side polishing, special coatings, or low-defect prime-grade requirements generally requires more processing and inspection than a basic test- or dummy-grade wafer.
Quantity also matters. Standard inventory supplied from an existing lot can be less expensive than a custom run requiring a specific thickness, orientation, dopant, resistivity, coating, or packaging requirement.

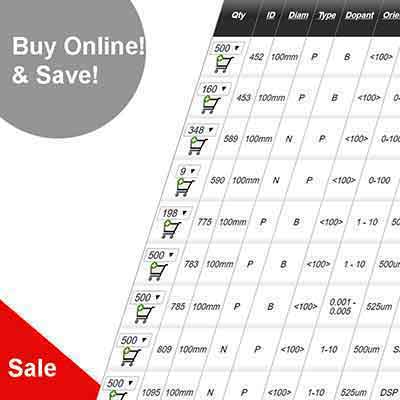

Get Your Quote FAST! Or, Buy Online and start researching today!
How Wafer Size and Quantity Affect Cost
Smaller-diameter wafers such as 2 inch, 3 inch, and 4 inch / 100 mm silicon wafers are common in laboratories, universities, MEMS development, process testing, and prototyping. Quantity can strongly affect the unit price, especially when wafers can be supplied from an existing lot rather than manufactured to a custom specification.
What Do 200 mm and 300 mm Silicon Wafers Cost?
200 mm silicon wafers and 300 mm silicon wafers generally cost more per wafer than smaller research diameters because they contain substantially more material and are manufactured to demanding dimensional and surface specifications. However, larger diameters can provide more usable die area per wafer in production. The final wafer price depends on grade, crystal orientation, resistivity, thickness, polish, edge profile, surface quality, coatings, and quantity—not diameter alone.
What do Nitride on Silicon Wafers Cost?
An associate professor in Mechanical and Aerospace Engineering, and director of the Bioinspired Robotics and Design requested the following:
Reference # 250591 for specs and pricing.
What Do Silicon Wafers Cost?
Silicon wafers are one of the key components in the manufacture of semiconductors. They are used in a
wide variety of electronic devices, from smartphones to cars.
There are a lot of things to consider when it comes to the cost of a silicon wafer. The main factors include size, density, usable area rate and dopants.
How Doping and Resistivity Affect Silicon Wafer Cost
The price of silicon wafers depends on several factors, including the diameter and thickness of the wafer. It also depends on the number of dies that can be produced from a single wafer. Manufacturers want to maximize the number of dies in a wafer to reduce the cost of making each chip.
The most important factor affecting the price of a silicon wafer is its size. The larger the wafer, the more transistors can be fabricated on it without decreasing the overall efficiency of the process. In fact, increasing the size of a silicon wafer can decrease the cost per die.
Common production and research diameters include 150 mm, 200 mm, and 300 mm. Wafer diameter does not determine whether a wafer is n-type or p-type; conductivity type is controlled by the dopant and resistivity specification selected for the application.
Many semiconductor wafers are produced using the Czochralski process. In this process, a seed crystal is pulled from molten silicon to form a cylindrical boule. This method is expensive and requires a lot of capital investment. However, there are other more inexpensive ways to make a silicon wafer.
Another significant factor affecting the cost of a silicon wafer is the dopants that are added to it. Dopants are substances that increase the conductivity of a silicon wafer. These materials can include boron, phosphorus and antimony.
Dopants are introduced into the silicon during its formation process. The type of dopants that are added depends on the material that is being formed. For example, a P-type doped silicon wafer will have numerous positively-charged holes in it. To produce an N-type doped silicon wafer, elements like phosphorus and antimony will be added.
Electrical specifications such as dopant species, conductivity type, resistivity range, carrier concentration, and uniformity can affect wafer pricing because tighter controls may require more specialized crystal growth, sorting, and metrology.
Common dopants include boron for p-type silicon and phosphorus, arsenic, or antimony for n-type silicon. Researchers should specify the required electrical properties rather than selecting a wafer based only on diameter.
How Silicon Wafer Diameter Affects Price
Silicon wafers are the foundation of nearly all of the electronic devices we use every day. They are a critical part of a wide range of electronics, including computers, televisions, radios, and cell phones.
The size of these wafers has been increasing steadily for the last 50 years. Historically, the growth of wafer size has been driven by three factors: increased chip size, increasing demand for chips, and increased throughput (and thus, lower cost per die) of chip production.
While these factors continue to be compelling, they are also driving new challenges. Larger wafers require more investment in technology and infrastructure, and the costs to produce these new silicon wafers are often very high.
To counter these problems, some semiconductor manufacturers are working to reduce the size of their chips. This has been an important step toward lowering the overall cost of silicon-based electronics.
Another reason why some companies are opting to produce their chips using smaller wafer sizes is that they can cut down on the number of steps involved in chip fabrication. While this can reduce the overall price of the chips, it may also cause a higher risk in terms of quality and reliability.
This is because smaller wafers may be subject to more damage during the manufacturing process. Fortunately, some companies are investing in equipment that can help reduce the risk of damage to the wafers during the fabrication process.
In addition to that, many companies are investing in new ways to reduce the amount of time spent on processing these circuits, which helps keep the overall cost of their products down. Whether you're a consumer or a manufacturer, knowing how to choose the best silicon wafers for your needs can make a big difference in how quickly and efficiently your products come to market.
It is a good idea to purchase your wafers from a reputable semiconductor manufacturing company that can guarantee the quality of their product and the safety of their manufacturing processes. Purchasing from an unknown manufacturer can result in a sub-standard or damaged product.
Crystal Orientation and Wafer Pricing
Orientation is one of the most important factors for semiconductor manufacturing. It affects the structure of the material and how it works, and it also impacts the way ions are transported through it. Choosing the proper orientation will help you produce high-quality chips at an affordable price.
The orientation of a silicon wafer is usually determined by the flats that are cut out along its edges. These flats indicate the crystallographic planes on the wafer's surface.
A silicon wafer can be oriented to either p-type or n-type depending on the initial doping concentration that is added to the wafer. These dopants are commonly boron, phosphorus, arsenic, or antimony.
Another factor to consider when choosing a wafer's orientation is the type of processing that it will be used for. Some processes, including anisotropic silicon etching and wafer cleaving, depend strongly on crystallographic orientation. Choosing the correct orientation will make this process easier and less time consuming.
Several manufacturers use different techniques to identify their wafers' orientation and doping polarity. For example, some use a small notch in the middle of a wafer to convey the orientation and doping type. Others use a combination of cuts and markings that indicate the doping type.
Wafer orientation should be identified from the supplier specification, wafer flat or notch convention, or crystallographic metrology rather than by mechanically breaking the wafer. Common orientations include (100) silicon and (111) silicon, selected according to device fabrication, etching, MEMS, and research requirements.
How Silicon Wafer Manufacturing Affects Cost
Silicon is one of the most abundant elements in the universe and comes second to oxygen. It is found in a variety of forms, including quartz, flint, sand and other minerals. It is most commonly used as a semiconductor in the electronics industry and can be found in many different devices that improve our daily lives.

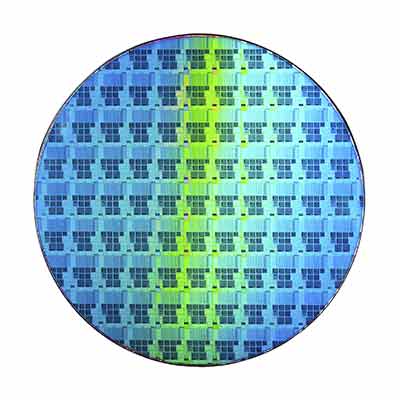

A silicon wafer is a thin slice of crystal silicon that is highly pure and can be used to manufacture a wide range of devices. These devices include everything from gyroscopes in cars to accelerators on smartphones.
Manufacturing a silicon wafer begins with high-purity silicon feedstock and crystal growth. One common method is the Czochralski process, in which silicon is melted and a seed crystal is slowly pulled from the melt to form a single-crystal ingot.
The silicon is heated above its melting point during crystal growth, and process conditions are carefully controlled to manage crystal quality, dopant concentration, oxygen content, and defect levels.
After the ingot is sliced into wafers, the substrates are cleaned, edge-finished, etched, and polished to remove damage and prepare the surface for research or device fabrication.
Next, the wafers are polished to create a mirror-like surface. Surface finishing can include stock removal and final chemical mechanical polishing (CMP), with tighter roughness and flatness requirements increasing processing cost.
The stock removal step removes very thin layers of the silicon from the surface, leaving behind a layer of haze. This is a critical step in the manufacturing process as it ensures that the wafer is free of damage and will conduct electricity without any perceivable blemishes.
After the stock removal process, the wafers are then polished to a finish that is even and free of any defects. This is a delicate and intricate process that requires the use of specially designed pads to achieve the desired result. The polishing pad is rotated to remove a minuscule amount of the wafer surface until the desired result is achieved.
