What's a MEMS Platform?

MEMS stands for Micro-Electro-Mechanical Systems. A MEMS platform typically refers to a system or technology that utilizes or incorporates MEMS components.

MEMS are miniature devices or systems that combine mechanical, optical, and fluidic elements with electronics. They're fabricated using microfabrication techniques, similar to those used in the semiconductor industry for manufacturing integrated circuits. Typical MEMS devices include sensors, actuators, and microstructures with dimensions that can range from several millimeters to less than one micrometer.

MEMS technology is widely used in a variety of applications, including:

Automotive: Accelerometers for airbag systems, tire pressure monitoring, and vehicle stability control.
Healthcare: Microfluidic devices for drug delivery, lab-on-a-chip diagnostic systems, and implantable pressure sensors.
Consumer electronics: Accelerometers, gyroscopes, and magnetometers in smartphones and gaming devices; microphones in smartphones and wearable devices.
Industrial: Pressure sensors, optical switches and mirrors, and fluidic systems.

A MEMS platform could be a specific set of MEMS devices or a framework that enables the design, manufacture, or application of MEMS. It could be a technological platform like a fabrication process, or a product platform that incorporates a variety of MEMS sensors and actuators. For example, a smartphone might be considered a MEMS platform because it incorporates a variety of MEMS devices like accelerometers, gyroscopes, and microphones.

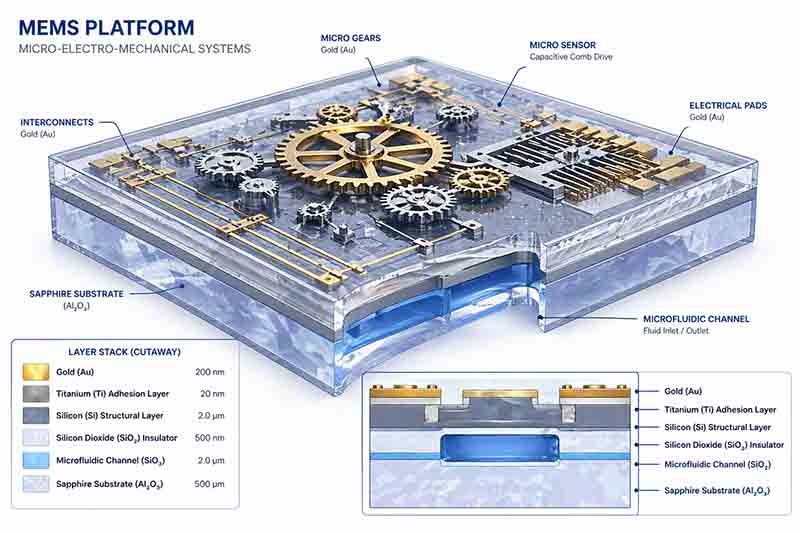

What Substrates are used to Fabricate MEMS Platforms?

Introduction To Substrates In Mems Technology: Understanding The Role Of Substrate Materials
Microelectromechanical systems (MEMS) have revolutionized various industries by enabling the miniaturization of devices with microscale components. These devices, ranging from sensors and actuators to microfluidic systems, rely on a solid foundation known as the substrate. The choice of substrate material plays a crucial role in determining the performance, reliability, and compatibility of MEMS devices. Substrates in MEMS technology serve as a platform that supports and provides mechanical stability to the microscale components.

They also offer electrical connections and thermal management capabilities. Additionally, substrates must exhibit suitable surface properties for deposition techniques used during fabrication processes. Various materials are employed as substrates in MEMS technology, each with distinct characteristics that cater to specific applications. Silicon is one of the most commonly used substrates due to its excellent mechanical strength, high thermal conductivity, and compatibility with semiconductor processing techniques.

Glass offers advantages such as transparency and low coefficient of thermal expansion, making it suitable for optical MEMS applications. Furthermore, polymers like polyimide provide flexibility and biocompatibility required for implantable medical devices or flexible electronics. Metals such as aluminum or copper can be used for their electrical conductivity while offering robustness against harsh environments.

Silicon Substrates: The Backbone Of Mems Fabrication And Applications
Silicon substrates play a crucial role in the fabrication and functioning of Microelectromechanical Systems (MEMS). As a versatile material with excellent mechanical, electrical, and optical properties, silicon has become the backbone of MEMS technology. In MEMS fabrication, single-crystal silicon wafers are widely used as the starting material due to their high purity and well-established manufacturing processes. These wafers provide a stable foundation for building intricate microstructures that form the core components of MEMS devices.

One key advantage of silicon substrates is their compatibility with complementary metal-oxide-semiconductor (CMOS) technology. This compatibility allows for the integration of MEMS devices with electronic circuits on a single chip, enabling enhanced functionality and miniaturization. Moreover, by leveraging CMOS processes, complex control circuitry can be integrated alongside MEMS structures on the same substrate. Additionally, silicon's mechanical properties make it an ideal choice for various sensing and actuation applications.

Its high Young's modulus ensures structural stability while its low thermal expansion coefficient minimizes stress-induced deformations. Furthermore, silicon's piezoresistive effect enables precise measurement of physical quantities such as pressure or strain.

Exploring Alternative Substrate Options: Glass, Quartz, And Silicon-On-Insulator Soi Substrates
When it comes to selecting substrates for MEMS (Micro-Electro-Mechanical Systems) platforms, there are several options available that offer unique advantages and limitations. This section explores three alternative substrate options: glass, quartz, and silicon-on-insulator (SOI) substrates. Glass substrates have gained popularity in MEMS due to their excellent optical properties, low thermal expansion coefficient, and chemical resistance. They are particularly suitable for applications requiring transparency or optical integration.

However, glass can be challenging to etch and has lower mechanical strength compared to other substrates. Quartz substrates provide exceptional mechanical strength and stability while maintaining excellent transparency in the ultraviolet range. Their high-temperature resistance makes them ideal for harsh environments or high-temperature processes. However, quartz can be expensive and difficult to process due to its extreme hardness. Silicon-on-insulator (SOI) substrates consist of a thin layer of silicon on top of an insulating layer such as silicon dioxide.
This structure offers improved isolation between devices and reduces parasitic capacitance. SOI substrates also enable fully integrated MEMS-CMOS systems on a single chip. However, they may suffer from residual stress due to the mismatch between the silicon film and the insulating layer.

Surface Modification Techniques For Enhanced Mems Performance: Importance Of Substrate Surface Modification

Substrate surface modification techniques play a crucial role in enhancing the performance of Micro-Electro-Mechanical Systems (MEMS) platforms. These techniques focus on altering the properties of the substrate material to optimize its compatibility with MEMS devices, resulting in improved device functionality and reliability. One important aspect of substrate surface modification is creating suitable topographies for effective device integration. This involves methods such as micro-structuring, nano-patterning, and roughening the substrate surface.
By controlling these features, it becomes possible to enhance adhesion between the device and substrate, improve stress distribution, and reduce residual strain that could affect MEMS performance. Another critical aspect is surface functionalization through chemical treatments or deposition of thin films. Chemical treatments can modify the surface chemistry of the substrate by introducing functional groups or altering its wettability characteristics. Thin film deposition techniques allow for precise control over coating thickness and composition, enabling adjustments in mechanical properties like stiffness or elastic modulus.
Furthermore, modifying the electrical conductivity of a substrate through doping processes can enhance electrical performance within MEMS devices. The addition of dopants alters carrier concentrations and mobility within the material, leading to improved signal transmission or sensing capabilities.

Thin-Film Deposition On Substrates: Key Considerations For Successful Mems Device Fabrication

Thin-film deposition on substrates is a critical process in the fabrication of Microelectromechanical Systems (MEMS) devices. The successful deposition of thin films on substrates is crucial for achieving optimal device performance and reliability. Several key considerations need to be taken into account during this process. Firstly, the choice of substrate material is crucial. The substrate should possess suitable mechanical, thermal, and chemical properties to support the desired MEMS structure and withstand subsequent processing steps.

Commonly used substrate materials include silicon, glass, polymers, and various compound semiconductors. Secondly, proper surface preparation is essential to ensure good film adhesion. This involves cleaning the substrate surface to remove contaminants and oxides that can hinder film-substrate bonding. Surface treatments such as chemical etching or plasma cleaning may be employed to enhance adhesion. Additionally, selecting an appropriate deposition technique plays a significant role in achieving high-quality thin films.

Techniques like physical vapor deposition (PVD), chemical vapor deposition (CVD), or atomic layer deposition (ALD) are commonly used in MEMS fabrication processes. Furthermore, controlling film thickness and uniformity across the substrate is critical for device performance consistency.
