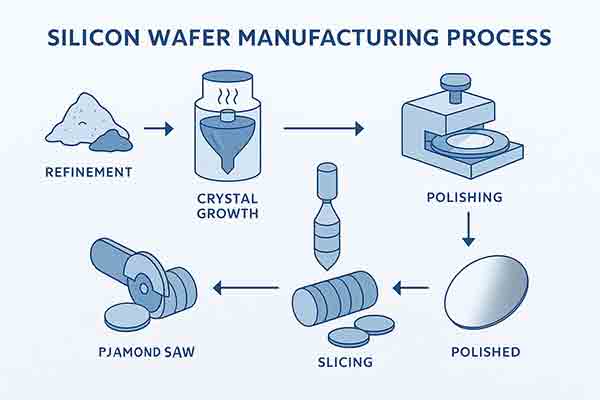

The silicon wafer manufacturing process begins with the extraction of high-purity silicon from quartz through a refining process. The purified silicon is melted and grown into a single-crystal ingot using techniques like the Czochralski (CZ) method or Float Zone (FZ) method, ensuring a defect-free crystalline structure. The ingot is then shaped to the desired diameter and sliced into thin wafers using a precision wire saw. These wafers are ground to achieve uniform thickness and undergo polishing to create a smooth, reflective surface suitable for semiconductor processing. Finally, the wafers are chemically cleaned to remove any impurities or contaminants, ensuring a pristine base for further semiconductor device fabrication. This highly controlled process produces silicon wafers with the precision and purity required for advanced electronic applications.



silicon wafer manufacturing process

Get Your Quote FAST!

What Does a Silicon Wafer Look Under A Microscope?

nder a microscope, the appearance of a silicon wafer depends on the type of microscope used and the specific features being observed:

Optical Microscope

  1. Surface Finish:

    • A polished silicon wafer will look smooth and mirror-like with no visible surface features.
    • Any scratches, contamination, or particles will be evident as irregularities on the surface.

  2. Thin Film Layers:

    • If coated with oxide or other materials, interference effects may cause visible colors (rainbow-like patterns).

  3. Patterned Wafers:

    • Photolithographically patterned wafers will show the designed circuitry, appearing as dark or light lines and patterns depending on the reflective properties.

Scanning Electron Microscope (SEM)

  1. Surface Morphology:

    • Detailed topography of the wafer's surface, including nanoscale roughness and grain boundaries if present.
    • For patterned wafers, SEM reveals the etched features in high resolution, showing intricate details of the circuits.

  2. Edges or Features:

    • Close inspection of edge defects, sidewall profiles, or cracks in deposited layers.

Atomic Force Microscope (AFM)

  1. Nanometer-scale Features:
    • Precise measurements of surface roughness.
    • Visualization of step heights, such as those in atomic terraces or features from chemical-mechanical polishing (CMP).

Key Observations

  • Undoped Polished Wafer:
    • Completely smooth and featureless under an optical microscope.
    • Mirror-like with any defects or particles clearly visible due to high contrast.
  • Patterned Wafer:
    • Shows clear lines, trenches, or other microstructures depending on the fabrication stage.

Would you like to examine specific surface features or stages in the silicon wafer processing under a microscope?

To examine specific surface features or stages in silicon wafer processing under a microscope, here's a breakdown of what you might observe:

1. Pristine Polished Wafers

Optical Microscope

  • What You'll See:
    • A flawless, mirror-like surface.
    • Dust particles or contamination appear as dark spots or smudges.
  • Use: To assess wafer cleanliness and uniformity.

SEM/AFM

  • What You'll See:
    • Nano-scale surface features (e.g., atomic steps or polishing marks).
    • RMS roughness is typically in the range of a few nanometers.

2. Oxide-Coated Wafers

Optical Microscope

  • What You'll See:
    • Thin oxide layers produce interference colors (rainbow-like patterns).
    • Thicker oxide layers appear more uniform and may show fewer colors.

SEM

  • What You'll See:
    • The oxide layer may appear as a bright or dark feature depending on its thickness.
    • Subtle cracks or imperfections in the oxide coating.

3. Patterned Wafers (Photolithography Stage)

Optical Microscope

  • What You'll See:
    • Visible circuit patterns, typically high-contrast lines or shapes.
    • Alignment markers for further processing steps.
    • Photoresist layers often appear dark and semi-transparent.

SEM

  • What You'll See:
    • Extremely fine details of the etched patterns, trenches, or vias.
    • Depth profiles of the features, with resolutions down to a few nanometers.

AFM

  • What You'll See:
    • Height variations in etched features.
    • Surface profiles of deposited or etched films.

4. Post-Etching (Dry or Wet Etching Stages)

Optical Microscope

  • What You'll See:
    • Major features in the etched patterns.
    • Residues or uneven etching may appear as irregularities.

SEM

  • What You'll See:
    • Sidewall angles and surface roughness after etching.
    • Fine details of defects such as microtrenching.

AFM

  • What You'll See:
    • Nano-level smoothness or roughness of etched surfaces.

5. Defect Inspection

Optical Microscope

  • What You'll See:
    • Scratches, particles, or stains on the wafer.
    • Large-scale defects like crystal dislocations or voids.

SEM

  • What You'll See:
    • Detailed characterization of pits, scratches, or crystalline defects.
    • High-resolution images of particle contaminants.

AFM

  • What You'll See:
    • 3D imaging of defects like scratches or polishing marks.

Tools & Microscopes by Stage:

  • Optical Microscope: Initial inspection, alignment, and large feature identification.
  • SEM: High-resolution analysis of patterns, etching, and deposition quality.
  • AFM: Nano-scale roughness, layer thickness, and feature profile.

Would you like guidance on using any of these tools or help with a specific stage?

Here's a guide on how to use specific tools for silicon wafer inspection or analysis at different stages. Let me know which stage you're focusing on, or follow this step-by-step approach:

1. Initial Inspection: Optical Microscope

Purpose: Quick assessment of cleanliness, surface quality, or alignment features.

  • Steps:
    1. Place the wafer flat on a clean microscope stage.
    2. Use brightfield mode to observe general surface conditions.
      • Look for scratches, particles, or color uniformity (e.g., oxide interference colors).
    3. Switch to darkfield mode to enhance contrast for minor particles or edge defects.
    4. Adjust magnification to focus on specific areas (5x–50x).
  • Key Observations:
    • Uniform reflectivity for polished wafers.
    • Colors from oxide or contamination.
    • Circuit features if the wafer is patterned.

2. High-Resolution Analysis: Scanning Electron Microscope (SEM)

Purpose: Examine etching profiles, layer thickness, or micro/nanoscale defects.

  • Steps:
    1. Clean and mount the wafer on the SEM sample holder using conductive tape.
      • Tip: If your wafer is non-conductive, coat it with a thin gold/palladium layer.
    2. Place the sample in the SEM chamber and pump to vacuum.
    3. Use a low accelerating voltage (1–5 kV) for surface features.
    4. Adjust the magnification to your area of interest (500x–50,000x).
    5. Use secondary electrons (SE) to observe surface morphology and backscattered electrons (BSE) for material contrast.
  • Key Observations:
    • Crystal grain boundaries, microtrenching, and contamination.
    • High-resolution images of patterned features, sidewalls, and depth.

3. Surface Profile and Roughness: Atomic Force Microscope (AFM)

Purpose: Measure nanometer-scale surface roughness or height differences.

  • Steps:
    1. Mount the wafer on the AFM stage and select the probe type (e.g., tapping mode for delicate features).
    2. Calibrate the probe using a standard surface.
    3. Scan the area of interest (typically 1 µm to 10 µm squares).
    4. Adjust scan parameters for better resolution (e.g., slower scan speed for high accuracy).
  • Key Observations:
    • Step height of features like trenches or deposited layers.
    • RMS roughness in nanometers for polished surfaces or post-etch areas.

4. Feature Depth and Thickness: Stylus Profilometer

Purpose: Direct measurement of layer thickness or trench depth.

  • Steps:
    1. Mount the wafer flat on the profilometer stage.
    2. Align the stylus with the starting point of your feature (e.g., edge of a trench).
    3. Set the scan range to cover the feature (e.g., 10–100 µm).
    4. Record the vertical displacement as the stylus moves.
  • Key Observations:
    • Layer thickness for deposited films.
    • Depth of etched features.

5. Specific Use Cases

Oxide Coating Inspection

  • Tool: Optical microscope with interference filters or an ellipsometer for thickness measurement.
  • Goal: Ensure oxide layers are uniform and within thickness specifications.

Patterned Wafers

  • Tool: SEM for sharp, high-resolution imaging of circuit features.
  • Goal: Verify dimensions, alignment, and etching quality.

Defect Analysis

  • Tool: SEM or AFM for identifying small pits, scratches, or contamination.
  • Goal: Classify defect types and determine root causes.

Let’s dive into specific setups and troubleshooting tips for using these tools effectively. Please let me know which tool you're focusing on (e.g., Optical Microscope, SEM, AFM, or Profilometer) or the specific goal you're trying to achieve (e.g., oxide layer inspection, defect analysis, or pattern verification). Here’s a tailored guide for each scenario:

1. Optical Microscope: Setup and Troubleshooting

Setup for Clean Inspection:

  • Cleanliness:
    • Ensure the wafer surface is dust-free. Use a cleanroom-grade air blower or nitrogen spray to remove loose particles.
    • Place the wafer on a lint-free substrate holder to avoid scratches.
  • Lighting:
    • Use brightfield for general observation or darkfield for enhanced contrast of fine particles or edges.
  • Magnification:
    • Start with 5x or 10x to locate features, then move to 50x or higher for detailed analysis.

Troubleshooting:

  • Issue: Surface features are blurry.
    • Check the focus and ensure the wafer is flat on the stage.
    • Confirm there’s no smudge or oil residue on the lens or wafer surface.
  • Issue: Interference patterns obscure details.
    • These may indicate an oxide layer. Use interference filters or switch to a monochromatic light source.

2. Scanning Electron Microscope (SEM): Setup and Tips

Setup for Clear Imaging:

  • Sample Preparation:
    • For conductive wafers (like doped silicon), mount the wafer directly on conductive tape.
    • For non-conductive wafers, apply a thin layer of conductive coating (gold or carbon) using a sputter coater.
  • Chamber Environment:
    • Ensure the SEM chamber reaches sufficient vacuum before imaging.
    • For delicate surfaces, use low-vacuum or environmental SEM modes.
  • Imaging Parameters:
    • Start with a low accelerating voltage (1–5 kV) for surface details.
    • Use secondary electrons (SE) to capture surface topography.

Troubleshooting:

  • Issue: Charging artifacts (bright spots or streaks on non-conductive samples).
    • Reduce the beam voltage or increase the working distance.
    • Ensure proper coating if required.
  • Issue: Image is noisy or blurry.
    • Adjust focus and stigmation controls for sharpness.
    • Increase dwell time for higher signal-to-noise ratio.

3. Atomic Force Microscope (AFM): Setup and Calibration

Setup for Accurate Scans:

  • Probe Selection:
    • Use tapping mode probes for fragile or patterned wafers.
    • For smooth, polished surfaces, contact mode provides higher resolution.
  • Calibration:
    • Use a standard calibration grid to verify the probe's sensitivity and accuracy.
    • Set scan parameters like speed and resolution based on the feature size.
  • Scanning:
    • Focus on a small area of interest (e.g., 1 µm × 1 µm) for nanoscale roughness or step height.

Troubleshooting:

  • Issue: Probe drags or damages the surface.
    • Switch to a lower force setting or use tapping mode.
  • Issue: Data has high noise or artifacts.
    • Ensure the wafer is properly secured and the probe is clean.

4. Stylus Profilometer: Setup and Common Challenges

Setup for Layer Thickness Measurement:

  • Sample Mounting:
    • Ensure the wafer is clean and firmly secured to the stage to avoid vibration during scans.
  • Stylus Settings:
    • Use a fine-tip stylus for small features.
    • Set appropriate force to avoid damaging delicate layers.
  • Scan Settings:
    • Adjust the scan range to encompass the feature of interest.
    • Slow scan speeds yield better accuracy.

Troubleshooting:

  • Issue: Stylus skips over features.
    • Increase the vertical sensitivity or recalibrate the stylus position.
  • Issue: Inconsistent readings.
    • Check for contaminants or improper mounting of the wafer.

Specific Goals and How to Achieve Them

  1. Oxide Layer Inspection:

    • Use an optical microscope to observe interference colors.
    • Confirm thickness using an ellipsometer or reflectometry.

  2. Defect Analysis:

    • Start with an optical microscope to locate large defects.
    • Use SEM or AFM for nanoscale defect identification and classification.

  3. Pattern Verification:

    • Use SEM for precise imaging of trenches, vias, and lines.
    • Measure depth and width using AFM or profilometer for critical dimension (CD) checks.

Let's proceed with a detailed step-by-step guide for a specific tool or stage. Could you clarify which tool or inspection goal you're focusing on? For example:

  1. Tool:

    • Optical Microscope
    • Scanning Electron Microscope (SEM)
    • Atomic Force Microscope (AFM)
    • Stylus Profilometer

  2. Inspection Goal:

    • Oxide thickness/color inspection
    • Pattern verification (lines, trenches, vias)
    • Surface defect analysis
    • Feature depth or roughness measurement

Let me know your focus, and I'll tailor the steps and troubleshooting advice accordingly!



Learn About The Silicon Wafer Manufacturing

Silicon wafer manufacturing can seem complex at first, but let's break it down into simple steps for someone just starting out in materials science. Think of it as transforming raw rock into shiny, flat "discs" used to make computer chips!

1. Starting Material: Quartz (SiO2)

  • What happens? Quartz, a natural rock, contains silicon in the form of silicon dioxide (SiO2). This is the starting material.
  • Goal: Extract silicon from quartz by heating it with carbon to produce metallurgical-grade silicon, which is about 98-99% pure.

2. Purifying Silicon

  • Why purify? Electronics need extremely pure silicon (over 99.9999% pure!).
  • How? The silicon reacts with chemicals to form a gas (trichlorosilane, SiHCl3). The gas is purified and then decomposed at high temperature, leaving behind pure silicon.

3. Growing the Crystal

  • Crystal structure: Silicon needs to be a perfect crystal (all atoms arranged in an orderly pattern).
  • How it’s done:
    • Melt the purified silicon.
    • Dip a small crystal "seed" into the molten silicon.
    • Slowly pull it out while rotating it to grow a larger, single-crystal cylinder (called an ingot).
    • This is called the Czochralski process.

4. Shaping the Ingot

  • Why shape it? The cylindrical ingot needs to be prepared for slicing into thin wafers.
  • Steps:
    • Trim the ends and grind it into a smooth cylinder.
    • Mark the orientation with a flat edge or notch to show how the crystal is aligned (important for processing later).

5. Slicing the Wafers

  • What happens? The cylinder is sliced into thin discs (wafers) using a very precise wire saw with tiny diamond particles.
  • Goal: Create wafers of uniform thickness for processing into chips.

6. Smoothing the Surface

  • Why? Slicing leaves tiny cracks and roughness on the wafer.
  • How?
    • Edge rounding: Smooth the edges to prevent cracks during use.
    • Grinding and lapping: Flatten the wafer surface.
    • Chemical etching: Use chemicals to remove damaged layers and leave a smooth surface.

7. Polishing

  • Why? The wafer surface must be mirror-smooth for building microchips.
  • How?
    • Wafers are polished with special pads and a chemical slurry to achieve atomic-level flatness.

8. Cleaning

  • Why? Any dirt, particles, or chemicals left on the wafer could ruin future chips.
  • How? Use ultra-pure water and chemicals to wash the wafers thoroughly in a cleanroom environment.

9. Inspection

  • What do they check?
    • Thickness and flatness.
    • Surface smoothness (no scratches or defects).
    • Crystal orientation and purity.

10. Packaging

  • Why? Wafers are delicate and need protection before they're sent to customers.
  • How? Wafers are placed in clean plastic cassettes and sealed in anti-static bags to prevent contamination.

Summary

  • Big idea: Silicon wafer manufacturing is about turning quartz rock into ultra-pure, flat, and smooth discs of silicon.
  • Key steps: Purify → Grow crystal → Slice → Smooth → Polish → Clean → Inspect → Package.

These wafers are the starting point for making electronic devices like computer processors, sensors, and solar cells. It’s a combination of chemistry, physics, and engineering, making it a great example of materials science in action!

The Silicon Wafer Manufacturing Process

The process of fabricating a silicon wafer has several steps. During the fabrication process, the finished wafer must be strong enough to support the weight of diverse applications. This is because the more material is added during the fabrication process, the larger the finished wafer's diameter and weight will be. However, the increase in the diameter will compromise the strength of a slice. Listed below are the main steps involved in the fabrication process.

the silicon wafer process explained

Ion Implantation

Ion implantation is a low-temperature doping technique that introduces atoms or molecules into the silicon crystal. The energy and mass of the ionized atoms or molecules vary, and they are implanted into the material to change its properties. The range of the implanted species depends on their mass and energy, as well as the atoms in the substrate. Then, the implanted species undergoes an annealing process to activate them. The lower the atoms in the silicon crystal, the better the electrical behavior.

Ion implantation is a relatively new process for producing silicon chips. The process requires only a single step, and it is used for many applications, from adjusting the threshold voltage in MOS transistors to creating new devices. Ion implantation is relatively quick, and requires relatively low temperatures. Masking materials can be used to control the ion concentration gradients and achieve a higher quality device.

The basic ion implantation process involves beaming a concentrated dopant atom into the silicon substrate. To do this, the dopant atoms are first ionised in a plasma - a source of ionized electrons - in an ion implantation chamber. Once ionized, the atoms then impact the silicon atoms, thereby causing them to lose energy. The atoms are then injected into the silicon substrate at a depth within the crystal lattice. The depth of penetration depends on the accelerating energy and the concentration of the dopant atoms.

Chemical diffusion, while effective for modifying the electrical properties of silicon devices, is limited to the regions near the surface. The depth of the doped layer also affects the final device's electrical characteristics. Another method of doping silicon is through diffusion. Doping, in general, involves introducing atoms in a layer and annealing from the doped layer. The latter method is used in the fabrication of semiconductors, and is often used for the development of advanced electronic devices.

Carbon Impurities Lower Minority Carrier Diffusion Length in the Final Silicon Wafer

Among the major impurities, carbon has the lowest performance degradation because of its reduced minority carrier diffusion length. These impurities affect the minority carrier lifetime mainly through their ability to nucleate rods. These impurities also cause severe shunts. These problems are particularly severe in the bottom silicon ingots, which contain copper and nickel. In addition, carbon reduces the minority carrier diffusion length by about 2% rel.

The concentration of carbon is lower in the float-zone silicon than in the Czochralski process. Its concentrations are 5 - 1017 cm-3 for the CZ silicon. Oxygen solubility in silicon is 1018 cm-3 at the melting point, but falls off by several orders of magnitude at room temperature. In addition to the reduction in minority carrier diffusion length, oxygen-related thermal double donors change the resistivity of the wafers. However, these impurities have other positive effects on the semiconductor.

The resistance of solar cells is usually low-lifetime. To make high-quality solar cells, high-performance mc-Si wafers with resistivity 1.8 +/-0.2 O cm were used. In the experiment, adjacent samples were chosen as reference wafers to reduce discrepancies in the wafer quality. Carbon impurities were first etched in a sodium hydroxide solution.

The presence of carbon impurities in the silicon material determines the mechanical and electrical properties of the silicon wafers. One recent study suggests that interstitial oxygen can reduce the number of carriers in the silicon substrate and lower the solar cell efficiency. However, substitutional carbon in silicon has no effect on the performance of solar cells. However, the carbon content of silicon wafers is not uniform and therefore it can not be determined accurately.

Chemical Etchant

A chemical etchant is a caustic liquid used to remove unwanted materials from a silicon wafer. This liquid removes both the oxide and the silicon, leaving behind the protective layer. An isotropic etchant is used for silicon, which exhibits the same etch rate in all directions, while an anisotropic etchant uses a different chemical composition. In addition, an anisotropic etchant introduces ions into the silicon dioxide, making it undesirable for semiconductor manufacturing.

HF is used to remove thin layers of silicon. Its composition is important. It must contain a large concentration of hydrogen ions or sodium hydroxide. The HF must be at least 65 percent hydrogen peroxide to be effective in the etching process. It must be strong enough to dissolve the silicon layer without damaging the surrounding materials. For this reason, it is important to carefully choose an etchant with a high hydrogen peroxide content.

Silicon etching is a process that uses liquid solutions to reduce a silicon layer to an n-dimensional structure. The sample is prepared by immersing it in an acidic solution and being lowered to a particular molten point. Afterward, the sample is tested for the rate, uniformity, and mask selectivity. The results of these tests are used to develop a reliable chemical etchant.

The etching process depends on the chemistry and the intended use of the silicon wafer. Various chemicals are used to remove material from silicon wafers. The process also increases the width of the wafer and smooths its sides, allowing for the desired pattern. The most common chemical etchant used for this purpose is buffered hydrofluoric acid, which is a chemical etchant. It can also be used to characterise the surface of a silicon wafer.

Mechanical Shaping

Silicon is a primary semiconductor material used in ICs. High-quality silicon wafers are the key to the performance of the ICs. Silicon wafer manufacturing involves a series of processes to achieve high-quality results. This book discusses the fundamental principles of silicon wafer manufacturing. It also explores some of the issues involved in silicon wafer manufacturing in the solar industry. The following sections discuss the processes that are commonly used to create these high-quality wafers.

During the initial stages of the silicon wafer manufacturing process, the silicon ingot is sliced into blocks of a desired diameter. The process also creates a notch or a flat surface for the silicon crystal. This step is critical to the final shape of the silicon crystal, as it makes sure the silicon crystals are perfectly oriented. The next step in silicon wafer manufacturing is polishing. After the sanding and polishing process, the wafers go through several more processes to make sure they are flat and free from scratches.

Mechanical shaping is performed by polishing the silicon wafer to a high-quality mirror finish. This process removes scratches and microcracks. Once the silicon wafer is polished, it is sliced by a diamond edge saw to produce a smooth surface. The diamond edge saw minimizes periferical stress and bow defects. During the polishing process, the silicon wafer is inspected for quality and smoothness.

During the shape shaping process, the wafer's thickness will vary. During the process, the thickness of a silicon wafer will vary depending on its material and its mechanical properties. It is possible to create different sizes of silicon wafers. If you're considering manufacturing a silicon chip, mechanical shaping may be the right option for you. If you're a first-time wafer manufacturer, you can start here to learn more about the process.

Polishing

The polishing of silicon wafers is a critical process in the manufacturing of semiconductors. The polished surface needs to be mirror-like for the final device to function properly. This requires a number of steps to ensure that the final product is defect-free and smooth. The first step is the lapping of silicon wafers. The lapping process involves removing excess silicon on both sides of the silicon wafer. The lapping process also reduces the amount of TTV, but it does not create crystallographically flawless surfaces.

The silicon ingot is first ground to a rough diameter. This is done to remove saw marks and surface defects. The silicon wafer is also cleaned and etched to remove any damage. Then, it undergoes critical edge grinding, which rounds the edges of the silicon wafer to reduce the risk of breakage during later manufacturing steps. Once the lapping process is complete, silicon wafers are then ready for the next step in the manufacturing process.

Once the surface of the wafer has been polished, a surfactant is applied. Surfactants vary in concentration, but the preferred concentration is 0.1 to 0.5 percent. Active drying helps reduce etching stains on the surface of the wafer. The surfactant may be heated or used in a gas to dry the silicon wafer. The drying environment is crucial, as it largely determines the final result.

Next, dopants are applied to silicon wafers. Dopants are chemical elements from Groups three and four of the periodic table. Their application alters the properties of the silicon and makes certain types of semiconductors work better. Common dopants include Boron, Phosphorus, and Antimony. If a semiconductor is made with P-type dopants, it will conduct less than a hundred watts of electricity.

How Does Silicon Wafer Become a Chip?

The transformation of a silicon wafer into a functioning chip is a complex, multi-step process involving advanced fabrication techniques in a cleanroom environment. Here's an overview of the key steps:

1. Raw Material Preparation

  • Silicon Extraction: Silicon is refined from quartz sand and purified into electronic-grade silicon.
  • Crystal Growth: A single crystal silicon ingot is grown using the Czochralski (CZ) or Float Zone (FZ) process.
  • Wafer Slicing: The ingot is sliced into thin wafers, which are then polished to achieve a smooth surface.

2. Wafer Preparation

  • Surface Cleaning: The wafer undergoes cleaning to remove contaminants.
  • Oxidation: A thin oxide layer is often grown on the wafer surface to serve as an insulating or protective layer.

3. Photolithography

  • Coating: The wafer is coated with a light-sensitive material called photoresist.
  • Exposure: A pattern is projected onto the wafer using ultraviolet (UV) light through a mask.
  • Development: The exposed photoresist is developed to reveal the pattern on the wafer.

4. Etching

  • The exposed areas of the silicon or oxide are etched away, leaving the desired pattern. This can be done through:
    • Wet Etching: Using chemical solutions.
    • Dry Etching: Using plasma or reactive gases.

5. Deposition

  • Thin films of materials like silicon dioxide, silicon nitride, or metals are deposited onto the wafer to form layers of the chip.
  • Deposition methods include:
    • Chemical Vapor Deposition (CVD)
    • Physical Vapor Deposition (PVD)
    • Atomic Layer Deposition (ALD)

6. Doping

  • Doping introduces impurities to modify the electrical properties of silicon.
  • Techniques:
    • Ion Implantation: High-energy ions are shot into the wafer.
    • Diffusion: Heat allows dopants to penetrate the silicon.

7. Planarization

  • Chemical Mechanical Polishing (CMP) smoothens layers to ensure even surfaces for subsequent steps.

8. Interconnect Formation

  • Metallization: Metal layers (e.g., aluminum or copper) are added to connect transistors.
  • Dielectric Layers: Insulating layers are added to separate metal layers.
  • Via Formation: Holes are etched and filled with metal to connect different layers.

9. Testing

  • Wafer-level testing checks functionality and performance of each die (chip) on the wafer.

10. Dicing

  • The wafer is cut into individual chips (dies) using a diamond saw or laser.

11. Packaging

  • Each die is enclosed in a protective package, which provides connections to external circuits.
  • Packaging includes:
    • Wire Bonding
    • Flip-Chip Bonding

12. Final Testing

  • Packaged chips undergo rigorous testing to ensure reliability and performance before being shipped to customers.

This process is repeated in a highly automated environment, ensuring precision and scalability for the mass production of semiconductor chips.
