Substrates Used to Fabricate Solid Oxide Fuel Cells

university wafer substrates

Substrates Often Used To Fabricate Solid Oxide Fuel Cells

Although less common, these substrates are used in research and development due to their optical properties and ease of handling.

Glass and Glass-Ceramic Substrates

Although less common, these substrates are used in research and development due to their optical properties and ease of handling.
    • Fused Silica:

      • Transparent and thermally stable.
      • Used in experimental setups to study thin-film SOFC materials and interfaces.
    • Aluminosilicate Glass-Ceramics:

      • Act as sealants or substrates for specific low-temperature applications.

Alternative Substrates for Research

Researchers are exploring innovative substrates to improve SOFC performance and lower costs.

  • Porous Substrates:

    • Enable efficient gas flow and reduce material usage.
    • Examples include porous alumina and specialized ceramic foams.
  • Silicon-Based Substrates:

    • Integrated in micro-SOFCs (miniaturized devices) for portable power applications.
    • Allow precise microfabrication techniques.

Get Your Substrate Quote FAST, or Buy Online and start researching today!





What Is the Market for Solid Oxide Fuel Cells?

The global solid oxide fuel cell (SOFC) market is experiencing significant growth, driven by the increasing demand for clean energy solutions and advancements in fuel cell technologies.

Market Size and Growth Projections

  • Current Valuation: In 2023, the SOFC market was valued at approximately USD 1.67 billion.

  • Future Projections: The market is projected to reach USD 15.27 billion by 2032, exhibiting a compound annual growth rate (CAGR) of 28.32% during the forecast period.

Regional Insights

  • Asia Pacific: This region dominated the market in 2023, accounting for 49.7% of the global share, with countries like Japan and South Korea leading in SOFC adoption.

  • North America: The U.S. market is expected to grow significantly, reaching an estimated value of USD 1.42 billion by 2032, supported by government incentives and a rising demand for clean energy sources.

Key Market Drivers

  • Private-Public Partnerships: Collaborations between governments and private entities are fostering advancements in SOFC technologies and their commercialization.

  • Environmental Concerns: The need to reduce greenhouse gas emissions is propelling the adoption of SOFCs, which offer higher efficiency and lower emissions compared to traditional power generation methods.

  • Technological Advancements: Ongoing research and development are enhancing the performance and reducing the costs of SOFC systems, making them more viable for various applications.

Applications

  • Stationary Power Generation: SOFCs are widely used in stationary applications, including combined heat and power (CHP) systems, due to their high efficiency and reliability.

  • Transportation: There is growing interest in integrating SOFCs into transportation, particularly in auxiliary power units and as range extenders for electric vehicles.

  • Portable Devices: The development of compact SOFC systems is expanding their use in portable power applications.

In summary, the solid oxide fuel cell market is poised for substantial growth, driven by environmental imperatives, supportive policies, and technological innovations that enhance the feasibility and attractiveness of SOFCs across various sectors.



How are Fused Silica Wafers Used for Solid Oxide Fuel Cells Research?

Fused silica wafers are valuable in solid oxide fuel cell (SOFC) research due to their unique properties that align well with the demands of such research. Here’s how they are commonly used:

Cathode Thin-films for Solid Oxide Fuel Cells

Five hundred micrometers thick fused silica wafers (double side polished, University Wafer, USA) were used as substrates for the platform. Fused silica has been preferred over silicon wafers in order to avoid parasitic impedances related to a conductive substrate as experienced in the literature [24, 29]. The sample fabrication routine for micropatterned metal oxide thin films and their contacts is depicted in Figure 9.1 A. On the right-hand side the stepwise buildup of multilayer structures designed for impedance measurements is shown. Detailed processing parameters for photolithography, sputtering of Pt and Ta, and deposition of LSCF and YSZ by pulsed laser deposition (PLD) are given in Tables 8.1-3, respectively. Masks printed on commercially available transparencies were applied during photolithography.

1. Substrate for Thin-Film Deposition

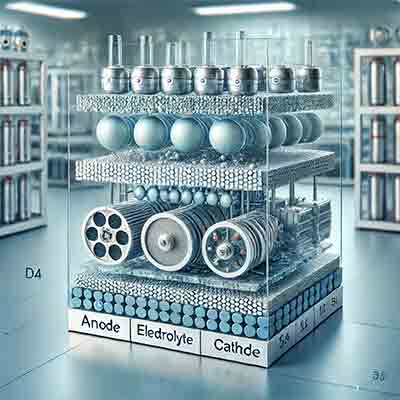

  • Fused silica wafers serve as an excellent substrate for depositing thin films of materials like electrolytes Solid Oxide Fuel Cells (SOFCs), highlighting their internal structure, including anode, electrolyte, and cathode layers, in a modular design suitable for industrial applications.(e.g., yttria-stabilized zirconia, YSZ) or electrodes (e.g., lanthanum strontium manganite, LSM).
  • Their smooth surface and thermal stability support high-quality film deposition and maintain structural integrity under high-temperature SOFC operating conditions.

2. Material Characterization Studies

  • Due to their low thermal expansion and excellent optical transparency, fused silica wafers are used for optical and spectroscopic studies.
  • These properties enable detailed analysis of materials and interfaces in SOFC components using techniques like Raman spectroscopy or infrared spectroscopy.

3. High-Temperature Testing

  • Fused silica's high melting point and resistance to thermal shock make it suitable for use in high-temperature SOFC environments.
  • Researchers often use these wafers to simulate or study conditions similar to SOFC operating temperatures, aiding in material stability and degradation studies.

4. Electrical and Electrochemical Analysis

  • Fused silica is an electrical insulator, providing a non-conductive base that isolates active materials like electrodes or electrolytes for precise electrical measurements.
  • It helps in studying ionic and electronic conductivity by preventing interference from the substrate.

5. Compatibility with Microfabrication Techniques

  • Fused silica wafers are compatible with photolithography and other microfabrication techniques. This compatibility is beneficial for creating micro-SOFC devices or patterns to study specific phenomena like ion diffusion or electrode reactions.

6. Prototype Development

  • Researchers use fused silica wafers to develop and test miniaturized SOFC prototypes. The wafers act as robust carriers or substrates, particularly in experiments requiring multiple heating and cooling cycles.

7. Surface and Interface Engineering

  • The inert and stable nature of fused silica allows for controlled experiments on surface coatings and interface engineering, which are crucial for improving SOFC efficiency and durability.

Fused silica wafers thus play a vital role in advancing SOFC research, particularly in understanding material behaviors, optimizing device designs, and enhancing performance metrics.
