Silicon Nitride (Si₃N₄) Coated Silicon Wafers

Silicon nitride wafers typically mean silicon substrates coated with a thin dielectric nitride film. UniversityWafer, Inc. supplies LPCVD and PECVD silicon nitride options for MEMS, microfluidics, photonics, and semiconductor process development. Compare stoichiometric Si₃N₄, low-stress SiNₓ, film thickness, and one- or two-sided coverage, then request a nitride-coated wafer quote with your complete substrate and film specifications.

UW Logo

Si3N4 Coated Silicon Wafers For Microfluidic Chip Research

A university student requested a quote for the following:

"I would like to get a quotation for a box of silicon wafers 200 um thick, orientation 100, intrinsic, double side polished. They must be coated with a Si3N4 layer of 50 nm. Which is the tolerance of the thickness of the wafers?

The Si3N4 layer of 50 nm should only be on one side. The quantity will be a full box (25 wafers). I want to use the wafers to make a microfluidic chip (I will etch some shapes using KOH), therefore other specs such as resistivity are irrelevant. The thickness should be 200 um and the orientation 100."

Please reference #209287 for pricing.

Get Your Quote Fast! Or Buy Nitride-Coated Silicon Wafers Online and start researching today!





Silicon Nitride Film Options

Choose stoichiometric LPCVD nitride, low-stress LPCVD nitride, or PECVD nitride according to your thermal budget, stress target, coverage, and etch requirements. “Super-low stress” describes film stress, not an unusually low deposition pressure.

The original page lists substrate formats from 2 inches to 300 mm and film thicknesses from 100 Å to 20,000 Å overall. These ranges do not imply that every combination is available. Confirm the selected process, wafer size, and film specification.

Film ranges and stress listings from this page; confirm the final quotation
Film optionListed thicknessCoverage / stress listing
Stoichiometric LPCVD100–4,500 Å (10–450 nm)Both sides; original stress notation ≥800 ± 50 MPa tensile.
Low-stress LPCVD100–20,000 Å (10–2,000 nm)Both sides; original stress notation <250 ± 50 MPa tensile.
Super-low-stress LPCVD100–20,000 Å (10–2,000 nm)Both sides; original stress notation <100 ± 50 MPa tensile.
PECVD nitride100–5,000 Å (10–500 nm)One side; +400 ± 50 MPa listed.
Low-stress PECVD100–20,000 Å (10–2,000 nm)One side; original stress notation <250 ± 50 MPa tensile.
PECVD oxynitride100–20,000 Å (10–2,000 nm)One side; −400 ± 50 MPa listed. Confirm stress sign and composition.

Several original stress entries combine a threshold and a ± tolerance. Request an unambiguous acceptance range and the measurement convention. A negative value is commonly used for compressive stress, so the original oxynitride description as “tensile” needs confirmation. Oxynitride contains oxygen and is distinct from stoichiometric Si₃N₄.

For a specified film-stress target, see targeted-stress LPCVD nitride. Confirm one-sided coating separately: LPCVD commonly coats exposed surfaces, so a one-sided end product may require an additional removal or masking step.

What Is a Si₃N₄-Coated Silicon Wafer?

A silicon nitride coated wafer combines a supporting silicon substrate with a deposited nitride film. The silicon wafer and the coating have separate properties: substrate diameter, thickness, orientation, and doping are specified independently of nitride thickness, composition, stress, and coating coverage.

Si₃N₄ denotes stoichiometric silicon nitride. The broader notation SiNₓ is often used for silicon nitride films whose composition differs from that ratio. Low-stress and PECVD films may have different composition, hydrogen content, optical properties, and etch behavior. Do not assume that all nitride recipes produce an identical film.

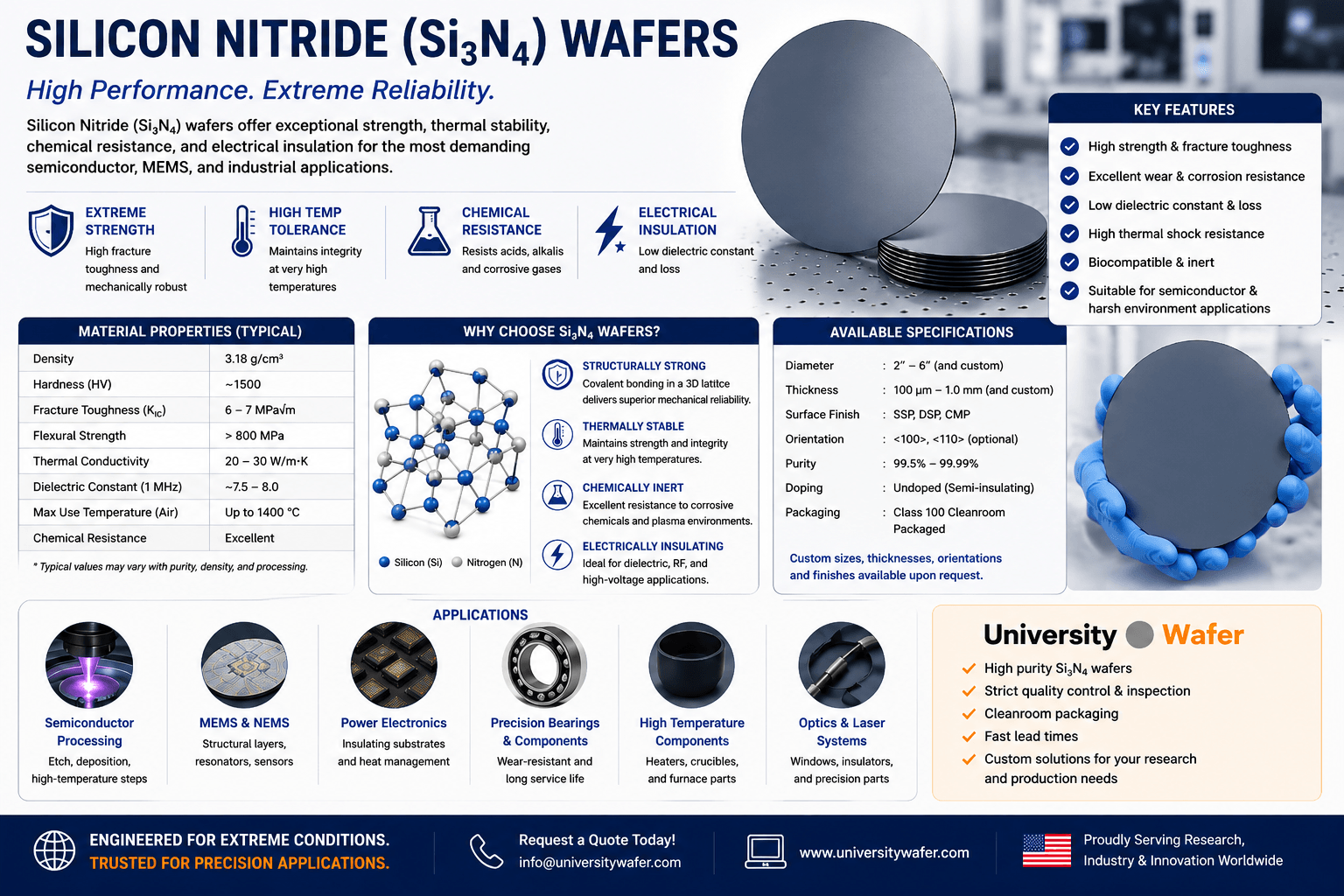

Silicon nitride coated silicon wafer applications in MEMS, microfluidics, photonics, and dielectric layers

Is Silicon Nitride a Semiconductor or a Dielectric?

Silicon nitride is used as an electrical insulator and dielectric in microfabrication. It is not silicon oxide, a metal, or an intermetallic conductor. Silicon dioxide (SiO₂) and silicon nitride are different dielectric materials with different chemistry and processing behavior.

Dielectric performance depends on composition, film quality, defects, thickness, and measurement conditions. A nitride coating may provide electrical isolation or passivation, but breakdown strength, leakage, and barrier performance should be specified for the intended structure rather than assumed from the material name.

LPCVD vs. PECVD Silicon Nitride

LPCVD Nitride

Low-pressure chemical vapor deposition (LPCVD) is commonly used for nitride films when the substrate and existing layers tolerate its thermal process. Stoichiometric and silicon-rich low-stress recipes serve different needs. LPCVD processing often coats both exposed wafer faces; confirm the final frontside and backside condition.

PECVD Nitride

Plasma-enhanced chemical vapor deposition (PECVD) supports lower-temperature deposition relative to typical thermal LPCVD nitride processes. PECVD silicon nitride films can be selected for processed wafers and other temperature-sensitive structures. Composition, stress, uniformity, and optical properties depend on the recipe.

For either method, include thickness tolerance, coating side, stress, and downstream etch conditions. Deposition method alone does not guarantee that a film will meet every membrane, optical, or masking requirement.

Low-Stress Nitride for MEMS and Membranes

Film stress matters when nitride is used in suspended membranes, cantilevers, and MEMS structures. Stress, thickness, window dimensions, defects, and release conditions act together. A low-stress label is not a universal guarantee against cracking, buckling, or membrane failure.

Low-stress nitride on silicon and targeted-stress films allow a more specific inquiry. Provide the desired tensile or compressive range, measurement conditions, and geometry.

Si₃N₄ for Microfluidics and KOH Etch Masks

The customer inquiry on this page requests a 200 µm thick, (100), intrinsic DSP silicon wafer with a 50 nm nitride film on one side, in a lot of 25 wafers. These are research requirements, not confirmation that every film recipe or wafer size will meet them.

For microfluidic channels and anisotropic silicon etching, crystal orientation, wafer thickness, mask integrity, and etch conditions are important. A one-sided 50 nm coating requires confirmation of uniformity, pinholes, stress, backside condition, and resistance to the intended etch. Compare the chosen nitride mask with thermal oxide coated silicon where relevant to your process.

Silicon Nitride for Photonics and Dielectric Layers

  • Photonics: SiN films are used in optical waveguides and photonic integrated circuits. Specify thickness, refractive index at a stated wavelength, stress, roughness, and optical-loss requirements.
  • Passivation and barriers: Nitride films can protect selected device surfaces and limit transport of unwanted species. Performance depends on film quality and process compatibility.
  • Patterning and etch masks: Nitride can be patterned for photolithography and microfabrication workflows. Etch selectivity and mask lifetime are process dependent.
  • MEMS and sensing: Mechanical layers and membranes require coordinated stress, thickness, adhesion, and release specifications.

For optical uses, see photonic substrate applications. For nitride-on-oxide stacks, specify every layer rather than treating SiN/Si and SiN/SiO₂/Si as equivalent.

How to Specify Silicon Nitride Wafers

  • Silicon wafer diameter, thickness, orientation, and electrical requirements
  • SSP or double-side polished substrate finish
  • LPCVD or PECVD deposition and allowable thermal budget
  • Film composition, thickness, tolerance, and uniformity
  • One-sided or two-sided coverage, including backside removal requirements
  • Film stress with a clear sign, range, and measurement convention
  • Oxide or other underlying layers, if needed
  • Surface roughness, optical, electrical, or etch acceptance criteria
  • Quantity, documentation, and requested delivery date

Thin-film metrology can be used to document thickness, stress, surface condition, and other acceptance requirements. Request a silicon nitride wafer quote with the complete substrate and coating specification.

Silicon Nitride Wafer Questions

Does a Si₃N₄ wafer mean a bulk silicon nitride ceramic?

On this page it refers to a silicon wafer carrying a deposited silicon nitride film. Bulk ceramic silicon nitride is a different product form.

Is low-stress nitride always stoichiometric Si₃N₄?

No. Low-stress recipes may be silicon rich or otherwise differ from stoichiometric Si₃N₄. Specify composition, refractive index, stress, and other properties important to your application.

Can I request nitride on only one wafer face?

Yes. State the final one-sided coverage requirement explicitly. PECVD often provides one-sided deposition, while LPCVD commonly coats exposed surfaces and may require an additional step to achieve a one-sided end product.

Is a 50 nm nitride layer suitable as a KOH mask?

Suitability depends on the deposition process, pinholes, uniformity, etch conditions, and required mask lifetime. The customer inquiry requests 50 nm, but that request is not a universal qualification of every 50 nm film.

How do I convert nitride thickness from angstroms to nanometers?

Ten angstroms equal one nanometer. For example, 100 Å is 10 nm, 500 Å is 50 nm, and 20,000 Å is 2,000 nm or 2 µm.
